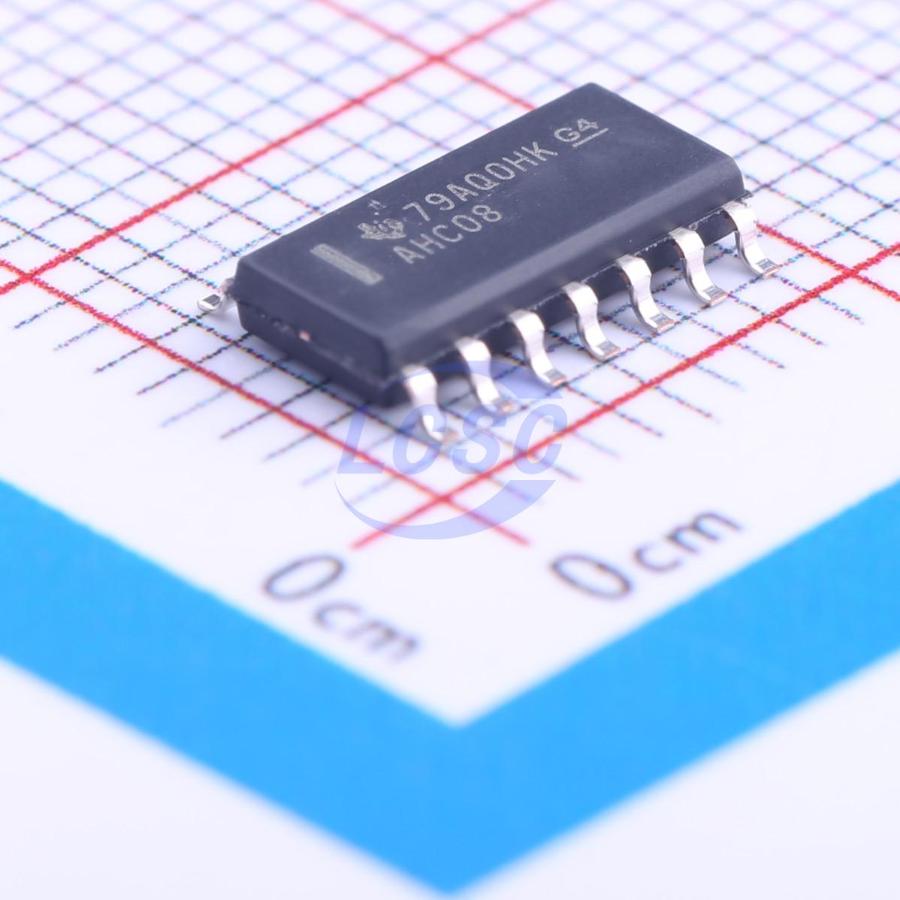

SN74AHC08DR

2V~5.5V 7.9ns@5V,50pF 2uA SOIC-14 Gates and Inverters RoHS

SOIC-14ROHS3 CompliantActive

QUADRUPLE 2-INPUT POSITIVE-AND GATES

Manufacturer: TI
Manufacturer part #: SN74AHC08DR
Store part #: C6937
Package / case: SOIC-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,805 in stock

#C6937

Stock & price checked 33 h ago

Quantity	Unit price	Pack price
5+	₹33.04	₹165.20
50+	₹26.29	₹1,314.50
150+	₹23.39	₹3,508.50
500+	₹19.78	₹9,890.00
2,500+	₹16.38	₹40,950.00
5,000+	₹15.41	₹77,050.00

Quantity (min 5, multiples of 5)

5 × ₹33.04

₹165.20

excl. GST

₹194.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74AHC08DR

₹165.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Push-pull
Logic Family: 74AHC Series
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;500mV
Propagation Delay: 7.9ns@5V,50pF
Input Logic Level - Low: 500mV~1.65V
Input Logic Level - High: 1.5V~3.85V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V
Quiescent Current(Iq): 2uA
Current - Output High(IOH): 8mA
Number of Channels: 4;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.264 g

Overview

The ’AHC08 devices are quadruple 2-input positive-AND gates. These devices perform the Boolean function Y = A AND B or Y = (A OR B)（overline） in positive logic.

Key features

Operating Range 2-V to 5.5-V
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
