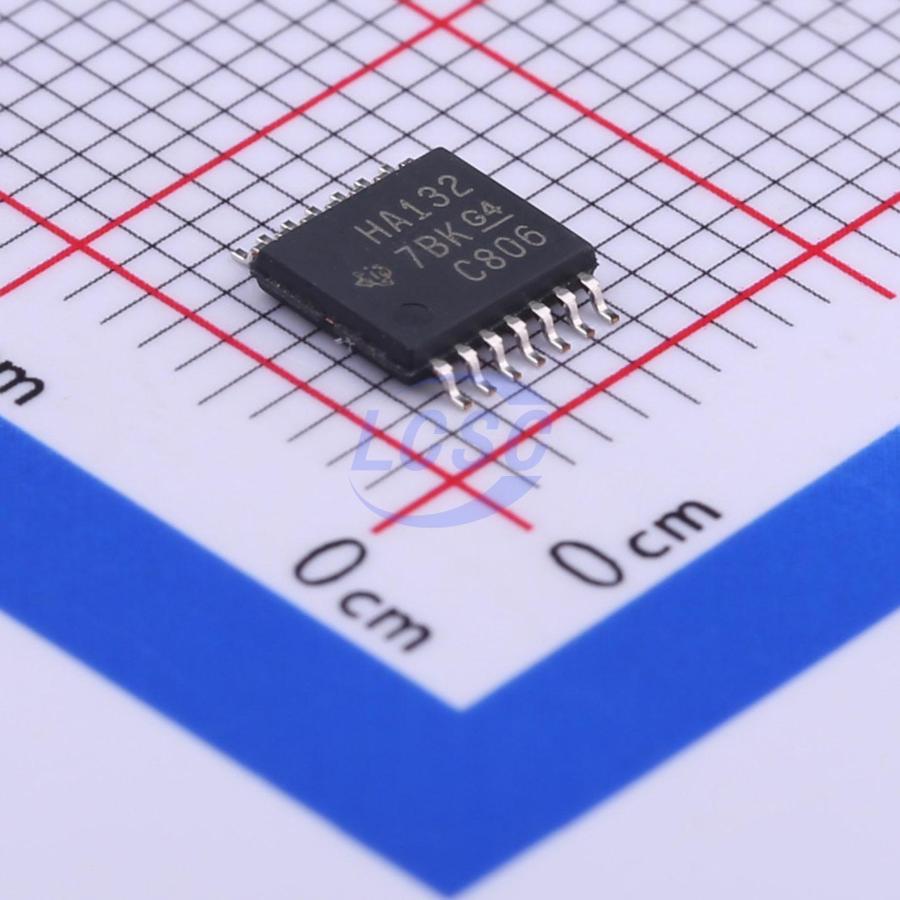

SN74AHC132PWR
Schmitt trigger 2V~5.5V 9.7ns@5V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
QUADRUPLE POSITIVE-NAND GATES WITH SCHMITT-TRIGGER INPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC132PWR
- Store part #
- C8155
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,976 in stock
#C8155
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.29 | ₹51.29 |
| 10+ | ₹40.21 | ₹402.10 |
| 30+ | ₹34.77 | ₹1,043.10 |
| 100+ | ₹29.99 | ₹2,999.00 |
| 500+ | ₹28.70 | ₹14,350.00 |
| 1,000+ | ₹27.82 | ₹27,820.00 |
1 × ₹51.29
₹51.29
excl. GST
₹60.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHC132PWR
₹51.29 for 1 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 9.7ns@5V,50pF
- Input Logic Level - High
- 2.2V~3.85V
- Input Logic Level - Low
- 900mV~1.65V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
The 'AHC132 devices are quadruple positive-NAND gates designed for 2-V to 5.5-V VCC operation. These devices perform the Boolean function Y = A•B or Y = A + B in positive logic. Each circuit functions as a NAND gate, but because of the Schmitt action, it has different input threshold levels for positive- and negative-going signals. These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean jitter-free output signals.
Key features
- Operating Range 2-V to 5.5-V Vcc Operation
- From Very Slow Input Transitions
- Temperature-Compensated Threshold Levels
- High Noise Immunity
- Same Pinouts as 'AHC00
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74VHC132MTCX#C903415onsemi · TSSOP-14 | onsemi | TSSOP-14 | 29 | ₹44.33 · 29 in stock | View |
 | 74AHC132PW,118#C554235Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 10 | ₹43.45 · 10 in stock | View |
 | SN74AHC00PWR#C8143TI · TSSOP-14 | TI | TSSOP-14 | 91 | ₹62.78 · 91 in stock | View |
 | SN74AHC00QPWRQ1#C2869045TI · TSSOP-14 | TI | TSSOP-14 | 95 | ₹59.68 · 95 in stock | View |
 | 74VHC132FT#C4469866TOSHIBA · TSSOP-14-175mil | TOSHIBA | TSSOP-14-175mil | 65 | ₹17.20 · 65 in stock | View |
