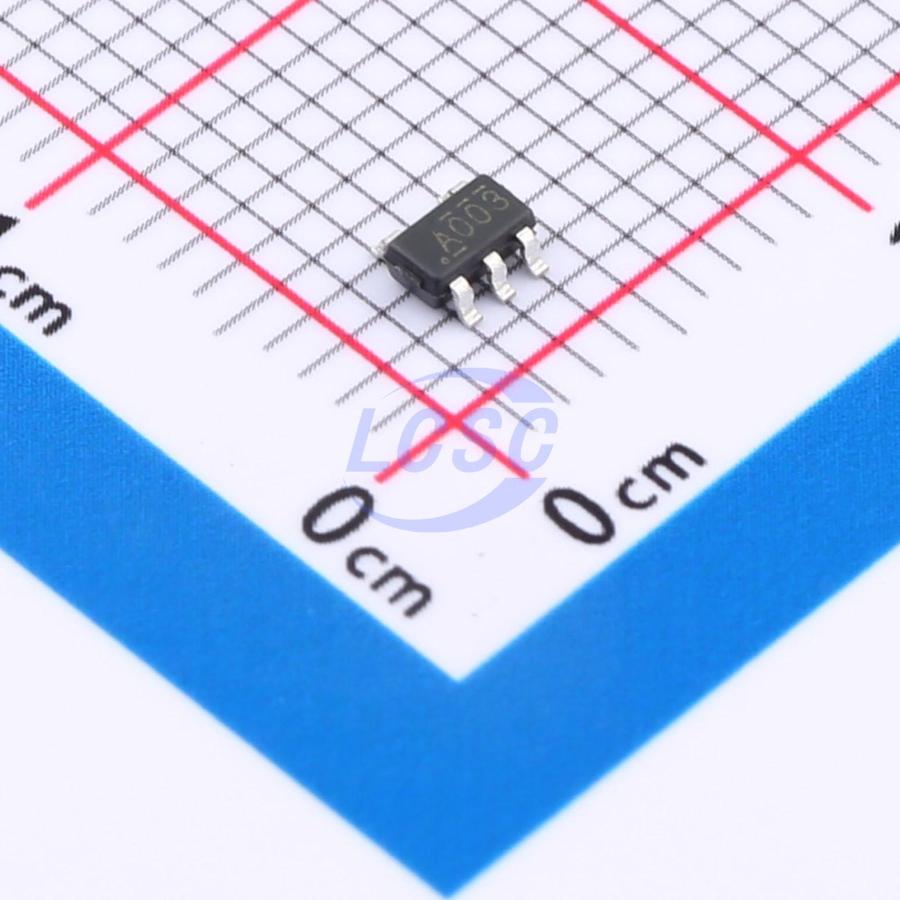

SN74AHC1G00DBVR-MS
NAND Gate IC 1 Channel SOT-23-5
SOT-23-5RoHSActive
2-input NAND gate integrated circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SN74AHC1G00DBVR-MS
- Store part #
- C30602471
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,320 in stock
#C30602471
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.94 | ₹99.40 |
| 100+ | ₹7.91 | ₹791.00 |
| 300+ | ₹6.91 | ₹2,073.00 |
| 3,000+ | ₹6.15 | ₹18,450.00 |
| 6,000+ | ₹5.54 | ₹33,240.00 |
| 9,000+ | ₹5.24 | ₹47,160.00 |
10 × ₹9.94
₹99.40
excl. GST
₹117.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G00DBVR-MS
₹99.40 for 10 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Logic Family
- 74AHC
- Output Logic Level - High
- 1.64V~4V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 16mA
- Propagation Delay
- 10ns@5V,15pF
- Output Logic Level - Low
- 10mV~350mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.045 g
Overview
Applications
- Portable audio interfaces
- Digital TV
- Wireless headphones, smartwatches, etc.
- Blu-ray players and home theater systems
- Solid-state drives
- Smart wearable devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G00DBVR-MS#C7434167MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,100 | ₹7.78 · 1,100 in stock | View |
