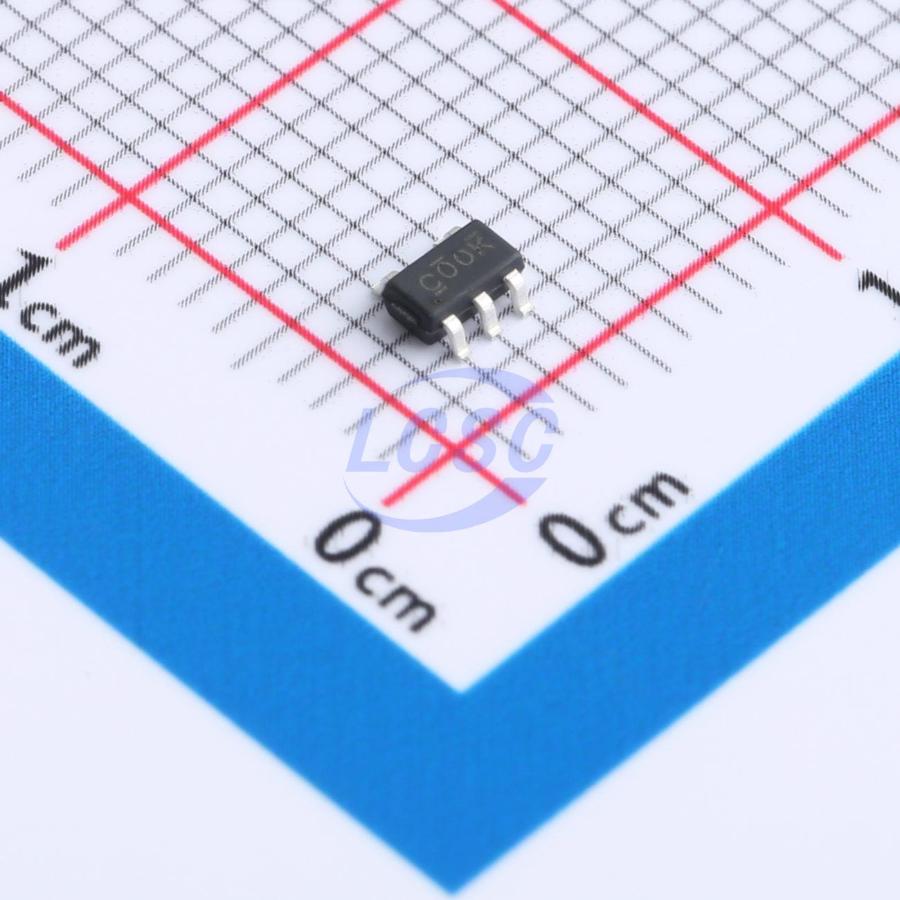

SN74LVC1G00DBVR-MS
NAND Gate IC 1 Channel SOT-23-5
SOT-23-5RoHSActive
2-input NAND gate integrated circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SN74LVC1G00DBVR-MS
- Store part #
- C7434167
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C7434167
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.78 | ₹77.80 |
| 100+ | ₹6.09 | ₹609.00 |
| 300+ | ₹5.24 | ₹1,572.00 |
| 3,000+ | ₹4.60 | ₹13,800.00 |
| 6,000+ | ₹4.09 | ₹24,540.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.78
₹77.80
excl. GST
₹91.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G00DBVR-MS
₹77.80 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V
- Output Logic Level - High
- 1.47V;2.15V;2.73V;4V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 110mV;200mV;350mV
- Propagation Delay
- 10ns@5V,15pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The SN74LVC1G00 is a single 2-input NAND gate IC that implements the logic functions Y = A(overline) + B(overline) and Y = (A * B)(overline). Designed with advanced CMOS technology, it features low power consumption and high output drive capability, operating over a VCC range of 1.65V to 5.5V. Available in multiple compact package options, it is widely applicable in high-end precision instruments, miniaturized low-power handheld devices, and AI-related applications.
Applications
- Portable audio interfaces
- Blu-ray players and home theater systems
- Digital TV
- Solid-state drives
- Wireless headphones, smartwatches, etc.
- Smart wearable devices
Key features
- Low input current: typical 0.1µA
- Wide operating voltage range: 1.65V to 5.5V
- Low quiescent current: typical 0.1µA
- Package options: DBV/DCK/DRL/YZP/DRY/DSF/DPW
- High output drive: VCC = 4.5V, greater than 32mA
