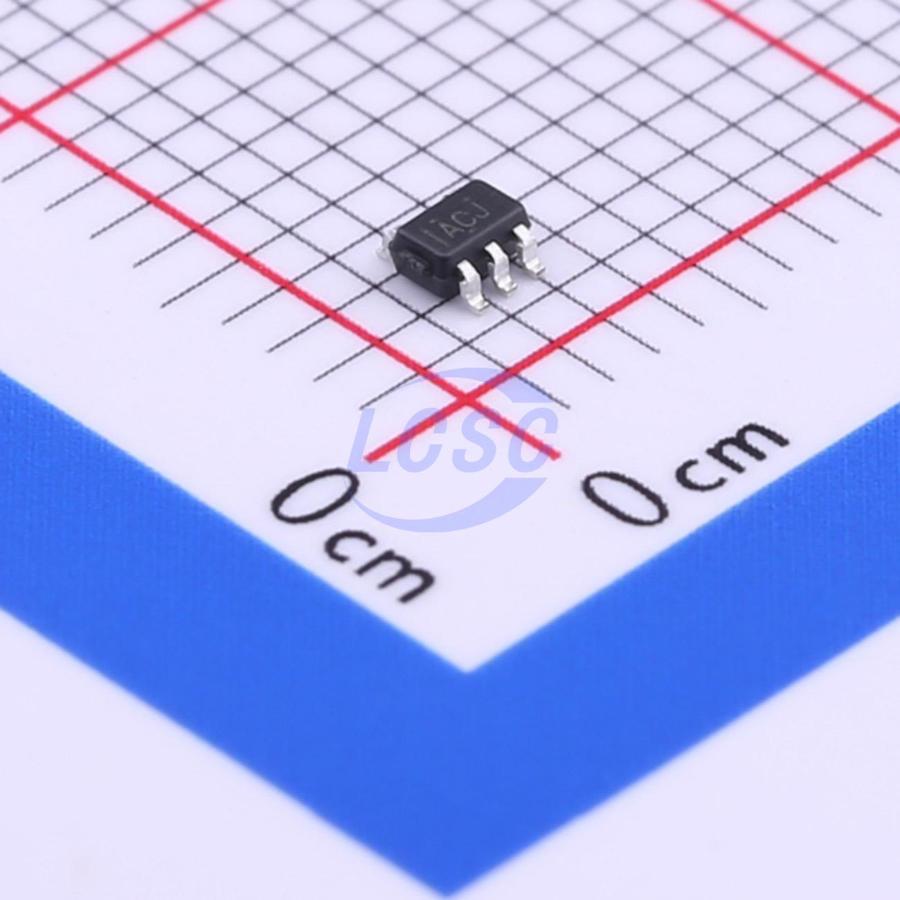

SN74AHC1G04DCKR
2V~5.5V 7.5ns@5V,50pF 1uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
Single Schmitt-Trigger Inverter Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G04DCKR
- Store part #
- C7466
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49,560 in stock
#C7466
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.14 | ₹81.40 |
| 100+ | ₹6.40 | ₹640.00 |
| 300+ | ₹5.54 | ₹1,662.00 |
| 3,000+ | ₹4.72 | ₹14,160.00 |
| 6,000+ | ₹4.21 | ₹25,260.00 |
| 9,000+ | ₹3.94 | ₹35,460.00 |
10 × ₹8.14
₹81.40
excl. GST
₹96.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G04DCKR
₹81.40 for 10 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V~3.85V
- Input Logic Level - Low
- 500mV~1.65V
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.48V;3.8V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
The SN74AHC1G04 contains one inverter gate. The device performs the Boolean function Y = A(overline)
Key features
- Operating Range 2 V to 5.5 V
- Max tpd of 6.5 ns at 5 V
- Low Power Consumption, 10 μA Max Icc
- 18 mA Output Drive at 5 V
- Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
- Latch-Up Performance Exceeds 250 mA Per JESD 17
