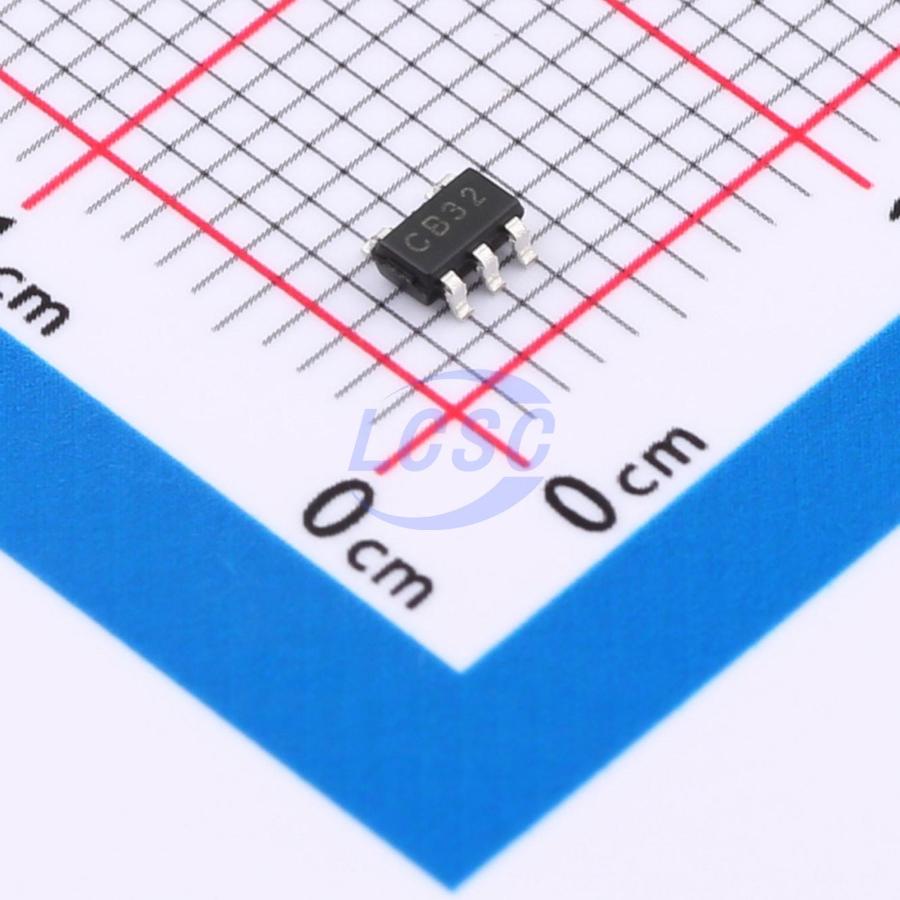

SN74AHC1G04T235(XBLW)
2V~5.5V 1uA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
Single Inverter
- Manufacturer
- XBLW
- Manufacturer part #
- SN74AHC1G04T235(XBLW)
- Store part #
- C41408445
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C41408445
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.18 | ₹61.80 |
| 100+ | ₹4.88 | ₹488.00 |
| 300+ | ₹4.23 | ₹1,269.00 |
| 3,000+ | ₹3.76 | ₹11,280.00 |
| 6,000+ | ₹3.36 | ₹20,160.00 |
| 9,000+ | ₹3.18 | ₹28,620.00 |
10 × ₹6.18
₹61.80
excl. GST
₹72.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G04T235(XBLW)
₹61.80 for 10 + GST
Specifications
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 6.1ns@3.3V,50pF;4.5ns@5V,50pF
- Output Logic Level - Low
- 100mV;360mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.056 g
Overview
The SN74AHC1G04 is a high-speed Si-gate CMOS devices. Provide a inverting buffer.
Applications
- Cameras
- E-Meters
- Infotainment
- Ethernet Switches
Key features
- Specified from -40℃ to +125℃
- Packaging information: SOT-23-5/SOT-353
- Low power consumption
- Operating range 2V to 5.5V
