XBLWDatasheet (PDF)

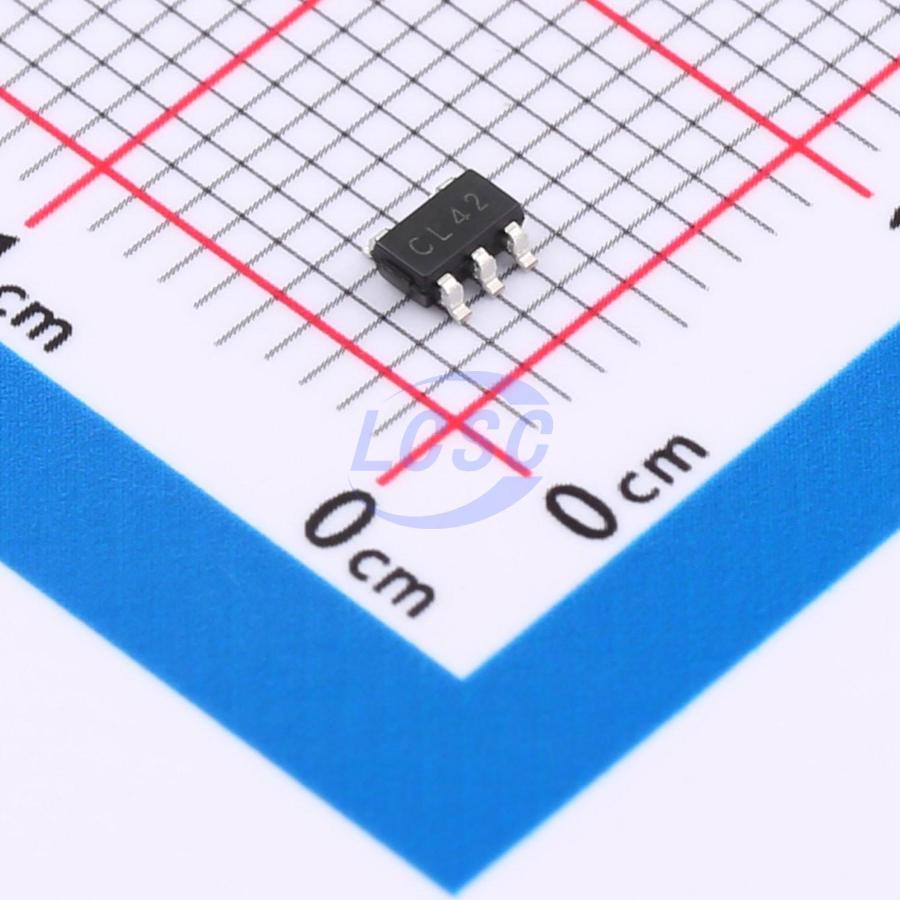

SN74AHC1G08T235(XBLW)
40uA 2V~5.5V 7.9ns@5V,50pF SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
Single 2-input AND Gate
- Manufacturer
- XBLW
- Manufacturer part #
- SN74AHC1G08T235(XBLW)
- Store part #
- C41408429
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C41408429
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.34 | ₹53.40 |
| 100+ | ₹4.22 | ₹422.00 |
| 300+ | ₹3.66 | ₹1,098.00 |
| 3,000+ | ₹3.24 | ₹9,720.00 |
| 6,000+ | ₹2.91 | ₹17,460.00 |
| 9,000+ | ₹2.74 | ₹24,660.00 |
10 × ₹5.34
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G08T235(XBLW)
₹53.40 for 10 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Output Logic Level - High
- 1.9V;2.9V;4.4V;3.7V
- Quiescent Current(Iq)
- 40uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;550mV
- Propagation Delay
- 7.9ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
The SN74AHC1G08 is a single 2-input AND gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Applications
- Barcode Scanners
- Cable Solutions
- E-Books
- Embedded PCs
- Field Transmitter: Temperature or Pressure Sensors
- Fingerprint Biometrics
- HVAC: Heating, Ventilating, and Air Conditioning
- Network-Attached Storage (NAS)
- Server Motherboard and PSU
- Software Defined Radios (SDR)
- TV: High Definition (HDTV), LCD, and Digital Video Communications Systems
- Wireless Data Access Cards, Headsets, Keyboards, Mice, and LAN Cards
