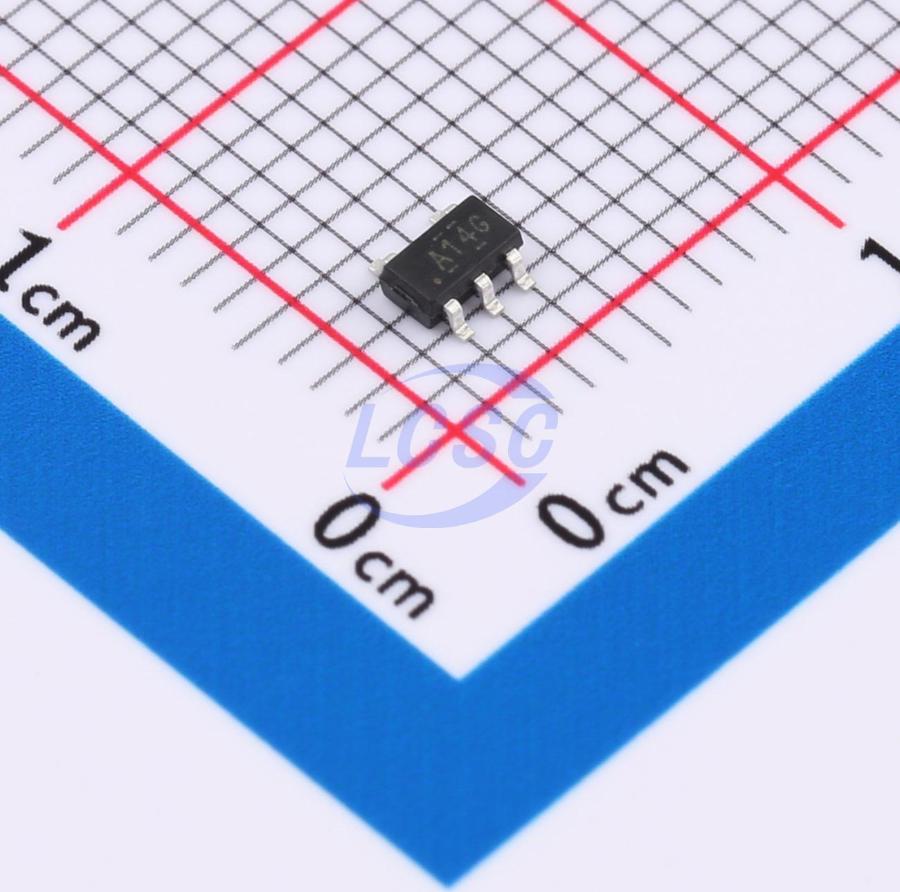

SN74AHC1G14DBVR
Schmitt trigger 2V~5.5V 14ns@5V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE SCHMITT-TRIGGER INVERTER GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHC1G14DBVR
- Store part #
- C19829668
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,150 in stock
#C19829668
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.82 | ₹78.20 |
| 100+ | ₹6.26 | ₹626.00 |
| 300+ | ₹5.48 | ₹1,644.00 |
| 3,000+ | ₹4.72 | ₹14,160.00 |
| 6,000+ | ₹4.25 | ₹25,500.00 |
| 9,000+ | ₹4.02 | ₹36,180.00 |
10 × ₹7.82
₹78.20
excl. GST
₹92.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G14DBVR
₹78.20 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 14ns@5V,50pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.94V;4.4V~4.5V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;1
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The SN74AHC1G14 contains one inverter with Schmitt-trigger, which provides the Function Y = A(overline). They provide an inverting buffer function with Schmitt trigger action. These devices are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 2V ~ 5.5V
- Low power consumption, lCC = 1μA (Max.) at 5.5V
- ±8mA output driver at 5V
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
