TECH PUBLIC

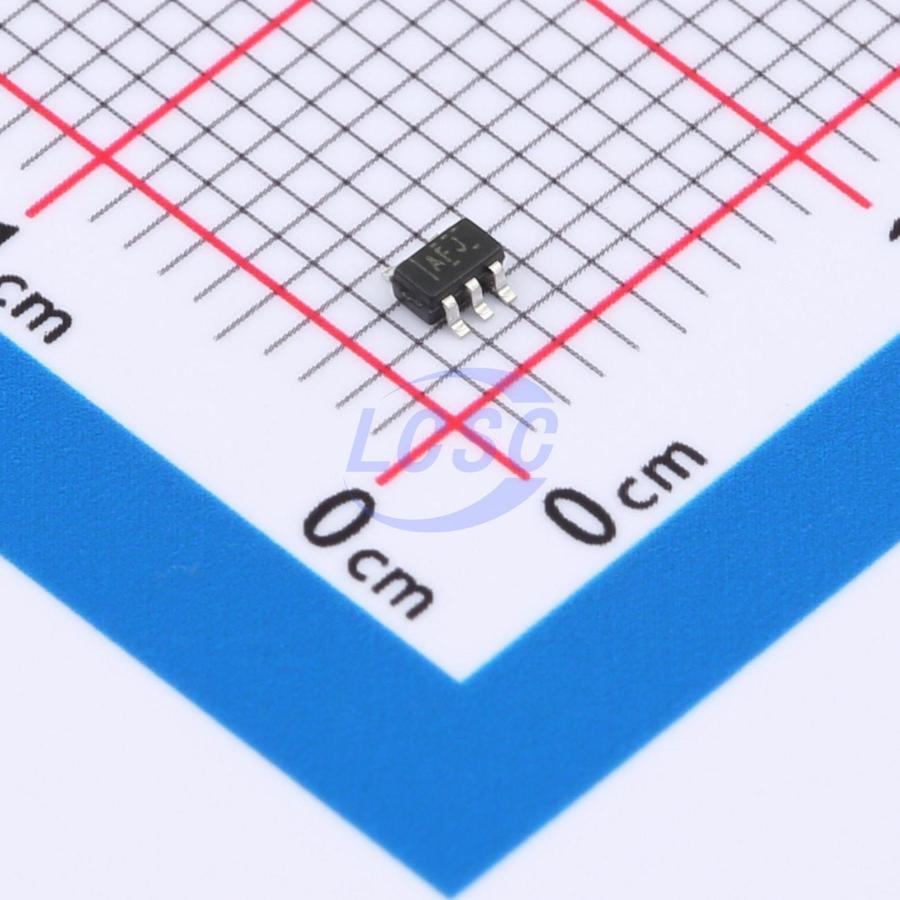

SN74AHC1G14DCKR

Schmitt trigger 2V~5.5V 21ns@3.3V,50pF 1uA SOT-353 Gates and Inverters

SOT-353RoHSActive

SINGLE SCHMITT-TRIGGER INVERTER GATE

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74AHC1G14DCKR
Store part #: C19829637
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,960 in stock

#C19829637

Stock & price checked 42 h ago

Quantity	Unit price	Pack price
10+	₹4.30	₹43.00
100+	₹3.73	₹373.00
300+	₹3.45	₹1,035.00
3,000+	₹3.24	₹9,720.00
6,000+	₹3.07	₹18,420.00
9,000+	₹2.99	₹26,910.00

Quantity (min 10, multiples of 10)

10 × ₹4.30

₹43.00

excl. GST

₹50.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AHC1G14DCKR

₹43.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;360mV
Propagation Delay: 21ns@3.3V,50pF
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.94V;4.4V~4.5V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 8mA
Number of Channels: 1;1
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

The SN74AHC1G14 contains one inverter with Schmitt-trigger, which provides the Function Y = A(overline) They provide an inverting buffer function with Schmitt trigger action. These devices are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.

Applications

Voltage Level Shifting
General Purpose Logic
Power Down Signal Isolation
PCs, Networking, Notebooks, Netbooks, PDAs
Tablet Computers, E-readers
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set-Top Box
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders

Key features

Operation Voltage Range: 2V ~ 5.5V
Low power consumption, ICC = 1μA (Max.) at 5.5V
±8mA output driver at 5V
ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
SOT23-5 Package Available
SOT353 Package Available
