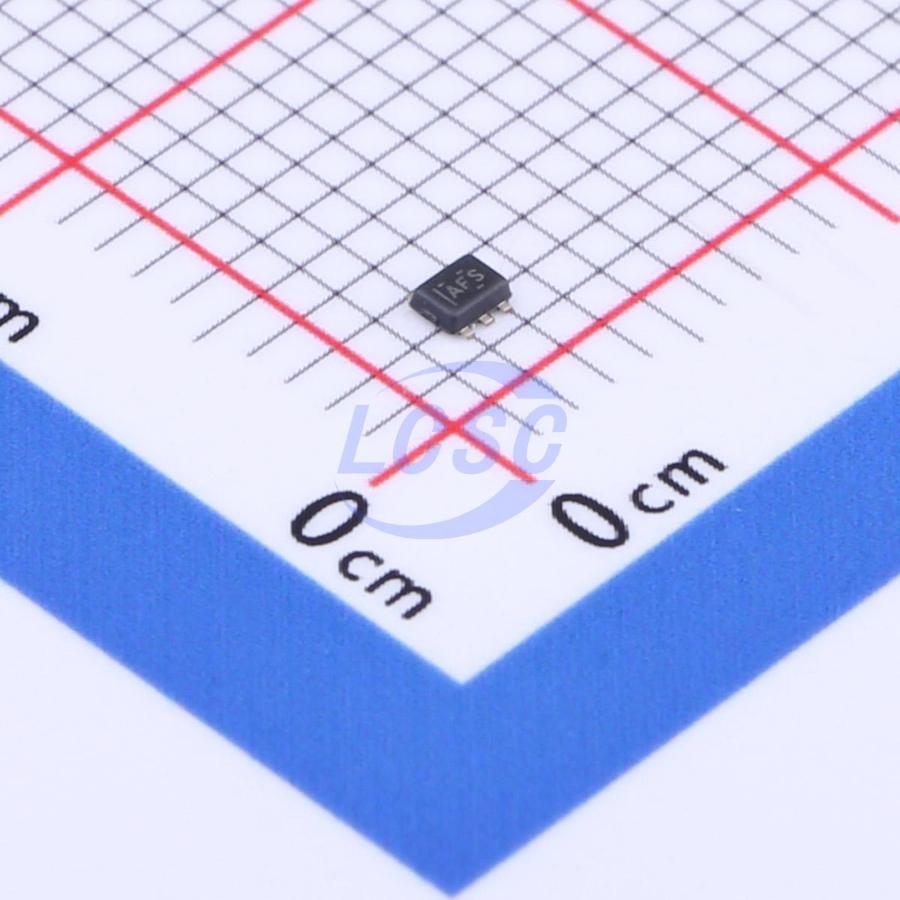

SN74AHC1G14DRLR
Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 1uA 1 SOT-553 Gates and Inverters RoHS
SOT-553ROHS3 CompliantActive
Single Schmitt-Trigger Inverter Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G14DRLR
- Store part #
- C2682052
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C2682052
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.43 | ₹237.15 |
| 50+ | ₹37.65 | ₹1,882.50 |
| 150+ | ₹33.46 | ₹5,019.00 |
| 500+ | ₹28.23 | ₹14,115.00 |
| 2,500+ | ₹25.90 | ₹64,750.00 |
| 4,000+ | ₹24.52 | ₹98,080.00 |
5 × ₹47.43
₹237.15
excl. GST
₹279.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74AHC1G14DRLR
₹237.15 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 10.6ns@5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 900mV~1.65V
- Input Logic Level - High
- 2.2V~3.85V
- Output Logic Level - High
- 3.94V~4.5V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
Operating Range 2 V to 5.5 V Maximum tpd of 10 ns at 5 V Low Power Consumption, 10-μA Max ICC ±8-mA Output Drive at 5 V Latch-Up Performance Exceeds 250 mA Per JESD 17 The SN74AHC1G14 device is a single inverter gate. The device performs the Boolean function Y = A̅. The device functions as an independent inverter gate, but because of the Schmitt action, gates may have different input threshold levels for positive- (VT+) and negative-going (VT-) signals.
Applications
- Barcode Scanners
- Cable Solutions
- E-Books
- Embedded PCs
- Field Transmitter: Temperature or Pressure Sensors
- Fingerprint Biometrics
- HVAC: Heating, Ventilating, and Air Conditioning
- Network-Attached Storage (NAS)
- Server Motherboard and PSU
- Software Defined Radios (SDR)
- TV: High Definition (HDTV), LCD, and Digital
- Video Communications Systems
- Wireless Data Access Cards, Headsets, Keyboards, Mice, and LAN Cards
Key features
- Operating Range 2 V to 5.5 V
- Maximum tpd of 10 ns at 5 V
- Low Power Consumption, 10-μA Max ICC
- ±8-mA Output Drive at 5 V
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G14X5#C48543230TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 3,335 | ₹11.05 · 3,335 in stock | View |
 | SN74AHC1G04DRLR#C2862279TI · SOT-553 | TI | SOT-553 | 166 | ₹54.71 · 166 in stock | View |
 | SN74LVC1G14DRLR#C2877550TI · SOT-553 | TI | SOT-553 | 165 | ₹21.02 · 165 in stock | View |
