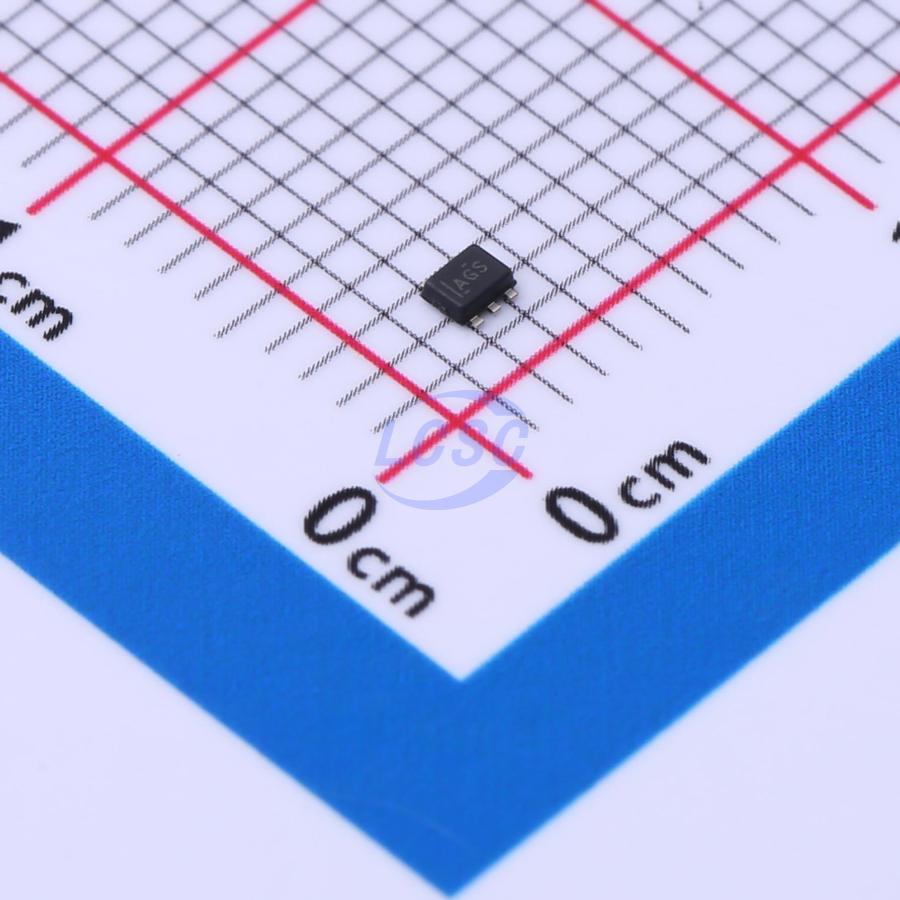

SN74AHC1G32DRLR
Schmitt trigger 2V~5.5V 7.5ns@5V,50pF 1uA SOT-5X3-5 Gates and Inverters RoHS
SOT-5X3-5ROHS3 CompliantActive
Single 2-Input Positive-OR Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G32DRLR
- Store part #
- C2860462
- Package / case
- SOT-5X3-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,155 in stock
#C2860462
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.97 | ₹139.85 |
| 50+ | ₹21.96 | ₹1,098.00 |
| 150+ | ₹19.02 | ₹2,853.00 |
| 500+ | ₹16.41 | ₹8,205.00 |
| 2,500+ | ₹15.69 | ₹39,225.00 |
| 4,000+ | ₹15.25 | ₹61,000.00 |
5 × ₹27.97
₹139.85
excl. GST
₹165.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74AHC1G32DRLR
₹139.85 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;440mV
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
The SN74AHC1G32 device is a single 2-input positive-OR gate. The device performs the Boolean function Y = A + B or Y = (A · B)（overline） in positive logic.
Applications
- AV Receivers
- Portable Audio Docks
- Blu-Ray Players and Home Theaters
- MP3 Players and Recorders
- Personal Digital Assistants (PDAs)
- Power: Telecom and Server AC DC Supply Single Controllers – Analog Digital
- Client and Enterprise Solid State Drives (SSDs)
- LCD and Digital TVs and High-Definition TVs (HDTVs)
- Enterprise Tablets
- Video Analytics Servers
- Wireless Headsets, Keyboards, and Mice
Key features
- Operating Range of 2 V to 5.5 V
- Max propagation delay (tpd) of 6.5 ns at 5 V
- Low Power Consumption, 10-μA Max ICC
- ±8-mA Output Drive at 5 V
- Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G32X5#C48543232TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 3,940 | ₹11.05 · 3,940 in stock | View |
