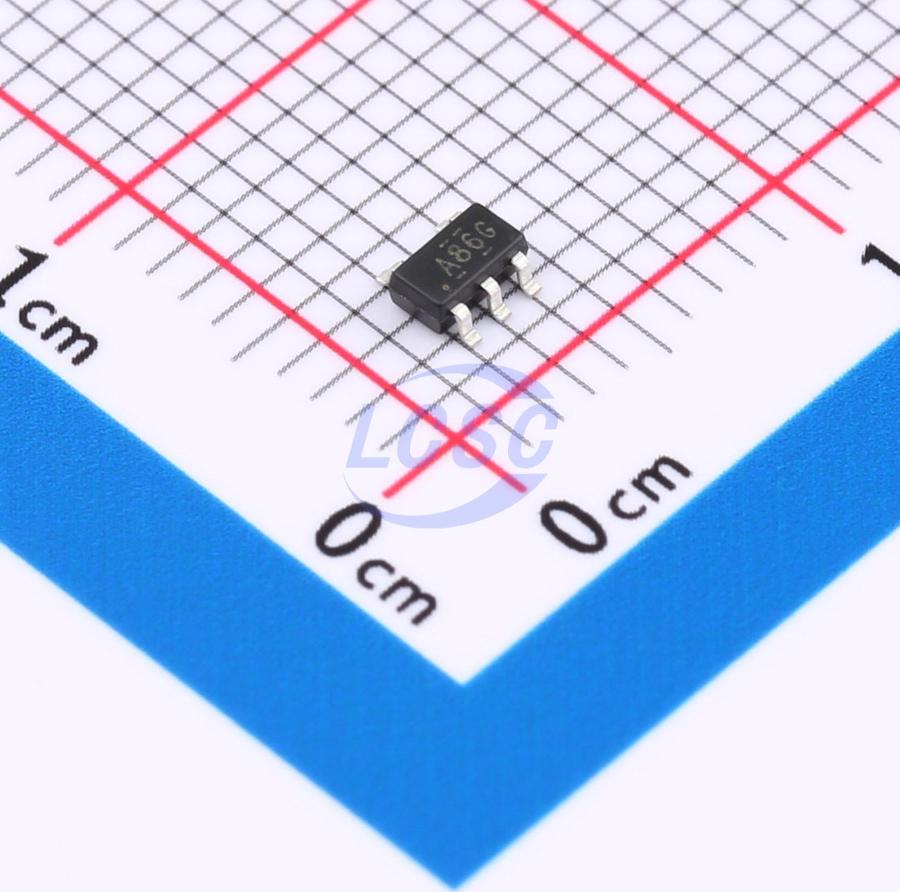

SN74AHC1G86DBVR
1uA 2V~5.5V 6.3ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
2-INPUT EXCLUSIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHC1G86DBVR
- Store part #
- C19829670
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,230 in stock
#C19829670
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.33 | ₹73.30 |
| 100+ | ₹5.77 | ₹577.00 |
| 300+ | ₹4.97 | ₹1,491.00 |
| 3,000+ | ₹4.39 | ₹13,170.00 |
| 6,000+ | ₹3.93 | ₹23,580.00 |
| 9,000+ | ₹3.69 | ₹33,210.00 |
10 × ₹7.33
₹73.30
excl. GST
₹86.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G86DBVR
₹73.30 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Propagation Delay
- 6.3ns@5V,50pF
- Output Logic Level - Low
- 100mV;360mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation voltage range: 2~5.5V
- Low power current: Icc = 10 mA (Max)
- High speed: tpr1 = 4.3 ns (Typ)
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74AHC1G86W5-TP#C52098166TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,100 | ₹5.85 · 3,100 in stock | View | |
 | TP74AHC1G86S5#C52205200TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,160 | ₹6.77 · 2,160 in stock | View |
 | MC74VHC1G86DTT1G-TP#C53100488TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,920 | ₹5.66 · 2,920 in stock | View |
 | TP74LV1T86S5#C48543225TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,490 | ₹19.86 · 2,490 in stock | View |
 | 74AHC1G86GV-TP#C52098167TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,500 | ₹5.85 · 4,500 in stock | View |
