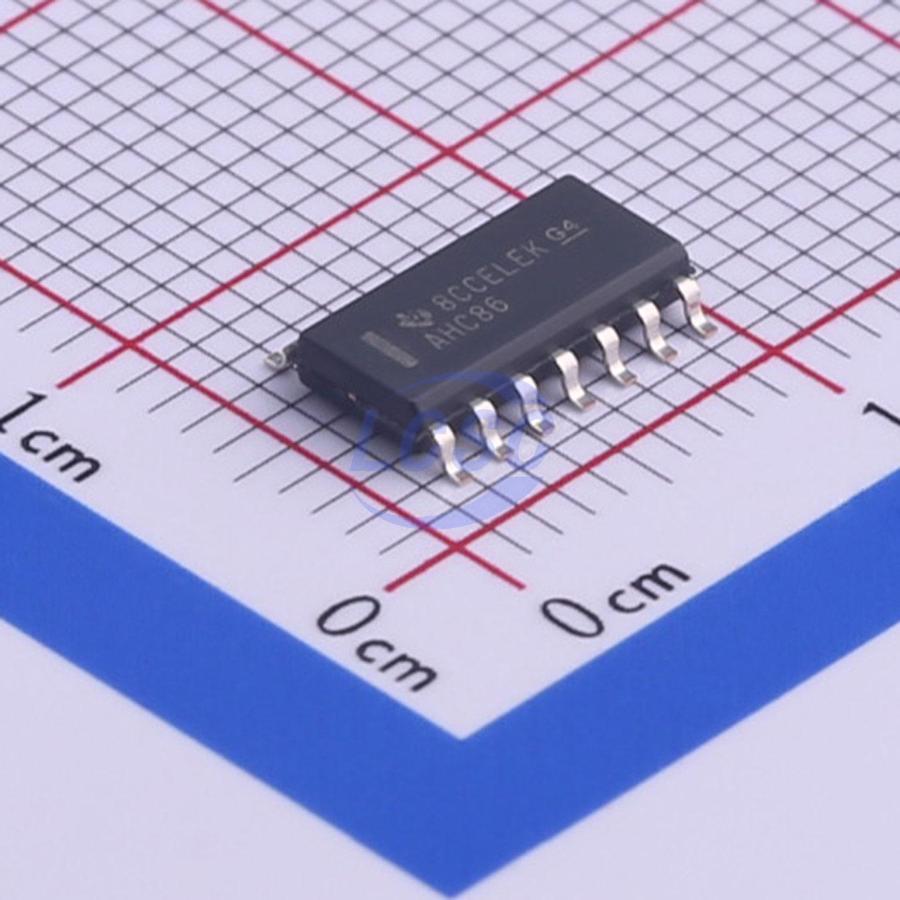

SN74AHC86DR
2V~5.5V 8.8ns@5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT EXCLUSIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC86DR
- Store part #
- C8175
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,565 in stock
#C8175
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.70 | ₹233.50 |
| 50+ | ₹36.62 | ₹1,831.00 |
| 150+ | ₹32.29 | ₹4,843.50 |
| 500+ | ₹26.90 | ₹13,450.00 |
| 2,500+ | ₹22.66 | ₹56,650.00 |
| 5,000+ | ₹21.22 | ₹1,06,100.00 |
5 × ₹46.70
₹233.50
excl. GST
₹275.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHC86DR
₹233.50 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;500mV
- Propagation Delay
- 8.8ns@5V,50pF
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.169 g
Overview
The 'AHC86 devices are quadruple 2- input exclusive- OR gates. These devices perform the Boolean function γ = A ⊕ B or γ = A(overline)B + AB in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
Applications
- True/complement signal conversion
- Logic equivalence level detection
- Parity check circuits
- Various XOR logic-related applications
Key features
- Operating Range 2-V to 5.5-V VCC
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C191)
