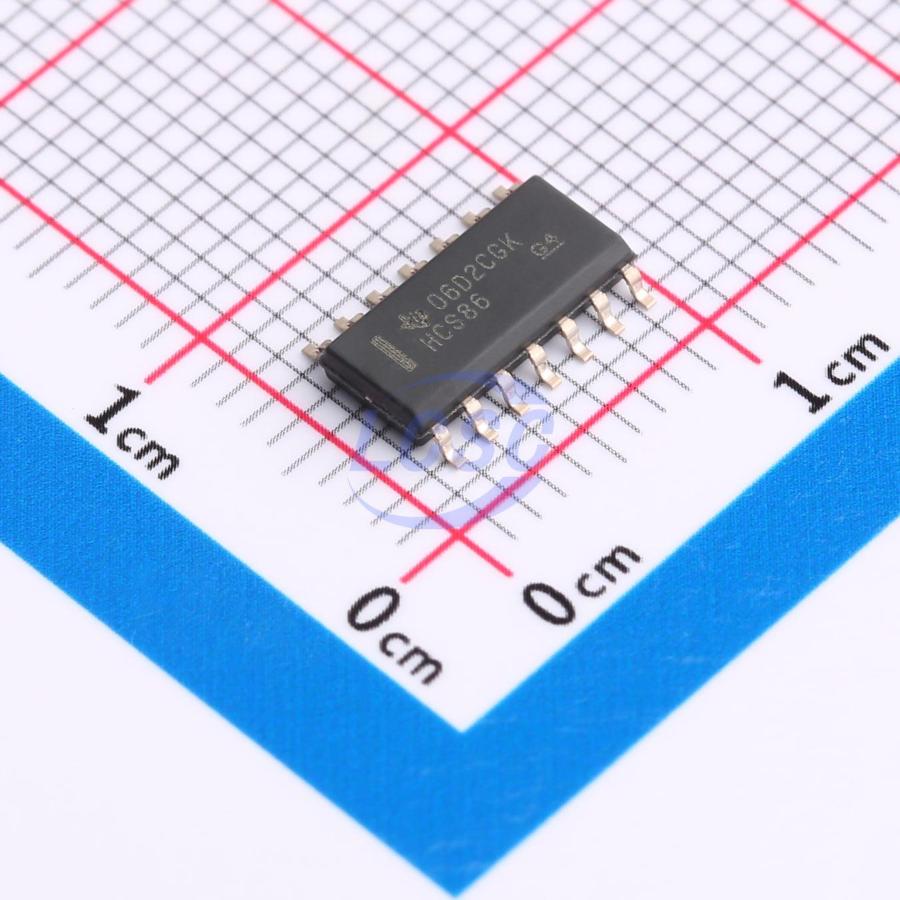

SN74HCS86DR
XOR Gate IC 4 Channel Schmitt Trigger input SOIC-14
SOIC-14ROHS3 CompliantActive
Quad 2-input XOR gates with Schmitt-trigger inputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCS86DR
- Store part #
- C2871621
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C2871621
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.67 | ₹193.35 |
| 50+ | ₹31.14 | ₹1,557.00 |
| 150+ | ₹27.47 | ₹4,120.50 |
| 500+ | ₹24.20 | ₹12,100.00 |
| 2,500+ | ₹23.30 | ₹58,250.00 |
| 5,000+ | ₹22.76 | ₹1,13,800.00 |
5 × ₹38.67
₹193.35
excl. GST
₹228.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HCS86DR
₹193.35 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74HCS Series
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 1V~3V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 7.8mA
- Number of Channels
- 4;2
- Propagation Delay
- 12ns@6V,50pF
- Current - Output Low(IOL)
- 7.8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.333 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SN74HCS86QDRQ1#C2878735TI · SOIC-14 | TI | SOIC-14 | 16 | ₹76.19 · 16 in stock | View | |
 | SN74AHC86DR#C8175TI · SOIC-14 | TI | SOIC-14 | 1,565 | ₹46.70 · 1,565 in stock | View |
 | 74AHC86S14-13#C842273DIODES · SO-14 | DIODES | SO-14 | 380 | ₹13.57 · 380 in stock | View |
 | 74HC86S14-13#C842427DIODES · SO-14 | DIODES | SO-14 | 1,100 | ₹22.83 · 1,100 in stock | View |
 | CD74HC86M96#C2870930TI · SOIC-14 | TI | SOIC-14 | 248 | ₹65.26 · 248 in stock | View |
