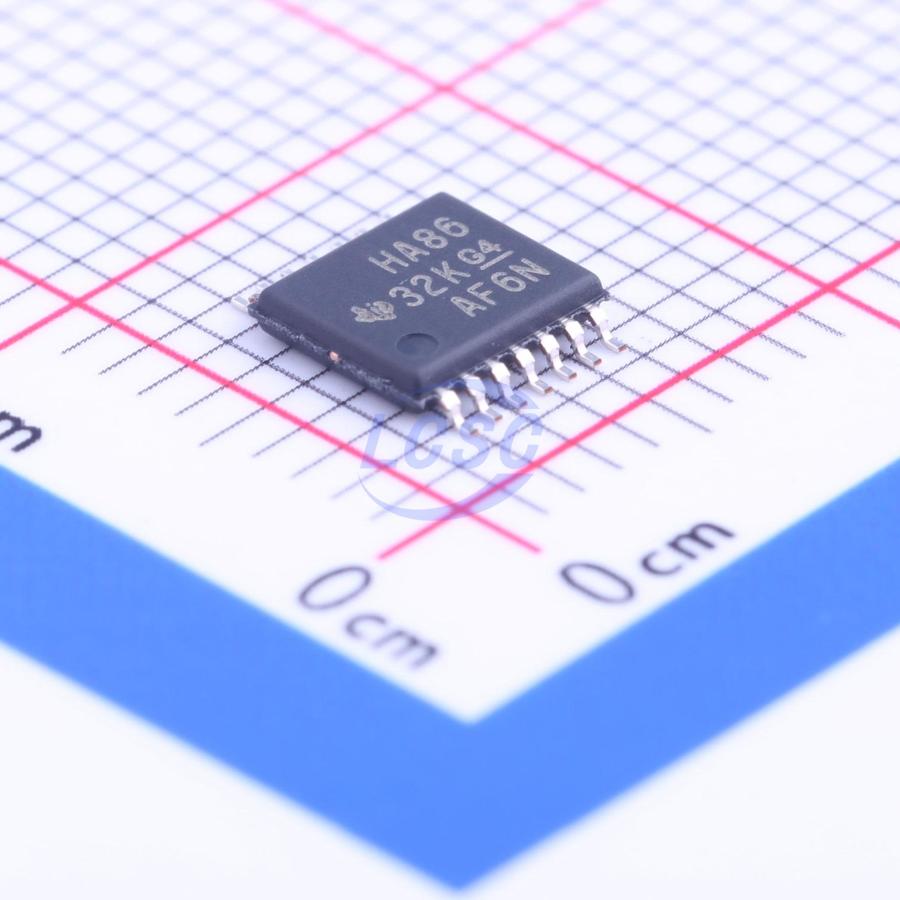

QUADRUPLE 2-INPUT EXCLUSIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC86PWR
- Store part #
- C117522
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,280 in stock
#C117522
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.42 | ₹252.10 |
| 50+ | ₹39.47 | ₹1,973.50 |
| 150+ | ₹34.77 | ₹5,215.50 |
| 500+ | ₹28.92 | ₹14,460.00 |
| 2,000+ | ₹26.31 | ₹52,620.00 |
| 4,000+ | ₹24.74 | ₹98,960.00 |
5 × ₹50.42
₹252.10
excl. GST
₹297.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHC86PWR
₹252.10 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;500mV
- Propagation Delay
- 8.8ns@5V,50pF
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The 'AHC86 devices are quadruple 2- input exclusive- OR gates. These devices perform the Boolean function γ = A ⊕ B or γ = A(overline)B + AB in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
Applications
- True/complement element
- Logic identity element: output active LOW when all inputs are at the same logic level
- Even parity element: output active LOW when an even number of inputs are active
- Odd parity element: output active HIGH when an odd number of inputs are active
Key features
- Operating Range 2-V to 5.5-V VCC
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C191)
