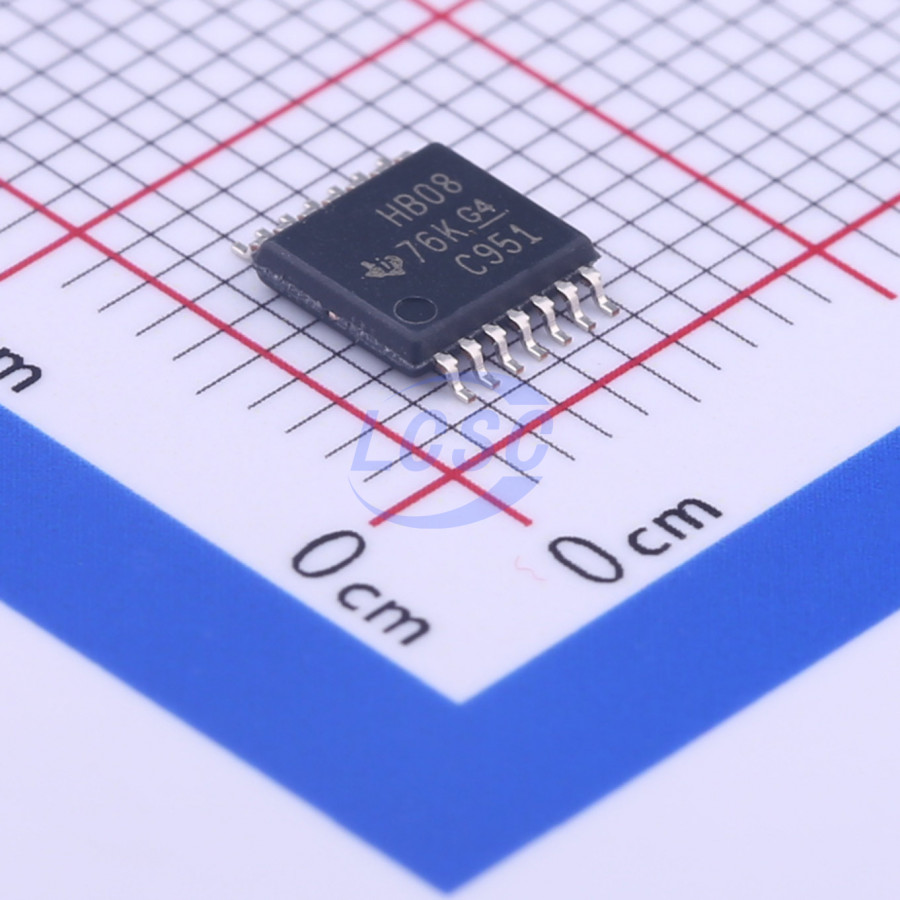

SN74AHCT08PWR
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quadruple 2-Input Positive-AND Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT08PWR
- Store part #
- C155175
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,065 in stock
#C155175
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.66 | ₹228.30 |
| 50+ | ₹35.68 | ₹1,784.00 |
| 150+ | ₹31.41 | ₹4,711.50 |
| 500+ | ₹24.73 | ₹12,365.00 |
| 2,000+ | ₹22.35 | ₹44,700.00 |
| 4,000+ | ₹20.93 | ₹83,720.00 |
5 × ₹45.66
₹228.30
excl. GST
₹269.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHCT08PWR
₹228.30 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- output type
- Push-pull
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The SNx4AHCT08 devices are quadruple 2 - input positive - AND gates. These devices perform the Boolean function Y = A x B or Y = A(overline) + B(overline) in positive logic.
Applications
- Servers
- Network Switches
- PCs and Notebooks
- Electronic Points of Sale
Key features
- Inputs are TTL - Voltage Compatible
- Latch - Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22:
- 2000 - V Human - Body Model (A114 - A)
- 200 - V Machine Model (A115 - A)
- 1000 - V Charged - Device Model (C101)
- On Products Compliant to MIL - PRF - 38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
