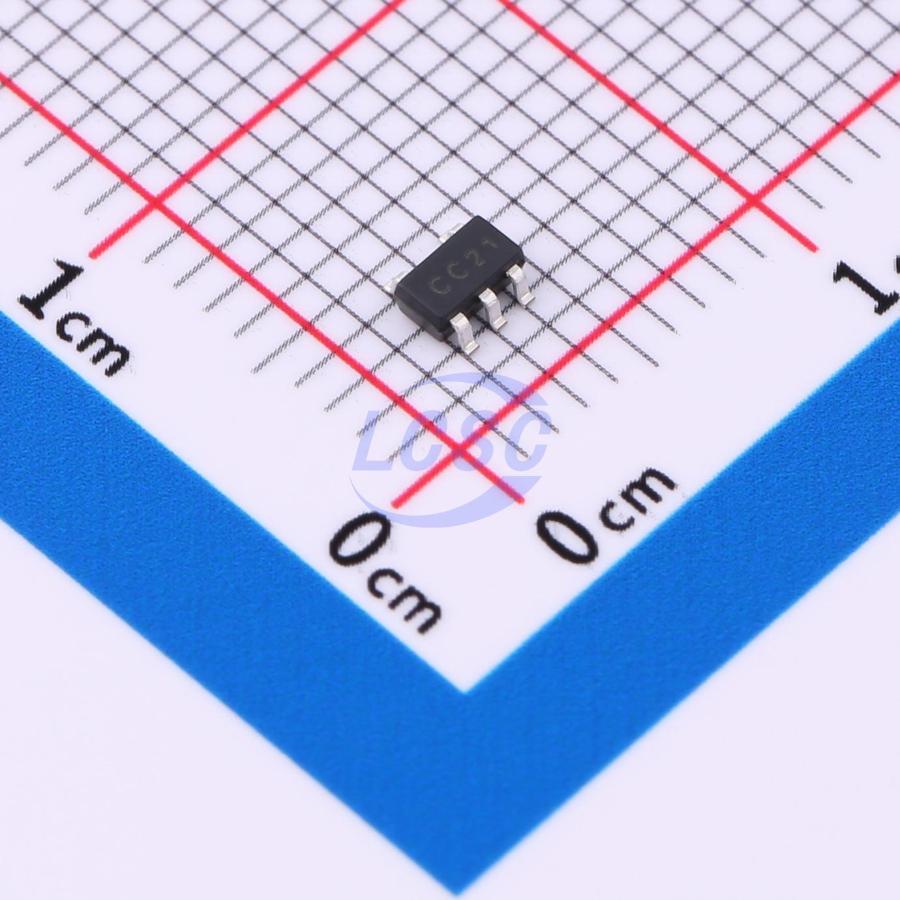

lingxingic

SN74AHCT1G04DB(LX)

4.5V~5.5V 4.9ns@5V,50pF 1uA 1 SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: lingxingic
Manufacturer part #: SN74AHCT1G04DB(LX)
Store part #: C41361215
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,480 in stock

#C41361215

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹6.87	₹68.70
100+	₹5.42	₹542.00
300+	₹4.71	₹1,413.00
3,000+	₹4.17	₹12,510.00
6,000+	₹3.74	₹22,440.00
9,000+	₹3.52	₹31,680.00

Quantity (min 10, multiples of 10)

10 × ₹6.87

₹68.70

excl. GST

₹81.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AHCT1G04DB(LX)

₹68.70 for 10 + GST

Specifications

output type: Push-pull
Logic Family: 74AHCT
Voltage - Supply: 4.5V~5.5V
Propagation Delay: 4.9ns@5V,50pF
Output Logic Level - Low: 360mV
Input Logic Level - High: 2V
Input Logic Level - Low: 800mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.94V
Quiescent Current(Iq): 1uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.053 g

Overview

SN74AHC1G04 and SN74AHCT1G04 are high-speed silicon-gate CMOS devices. They provide inverting buffering. The SN74AHC1G04 features CMOS input switching levels with a supply voltage range of 2V to 5.5V. The SN74AHCT1G04 features TTL input switching levels with a supply voltage range of 4.5V to 5.5V.
