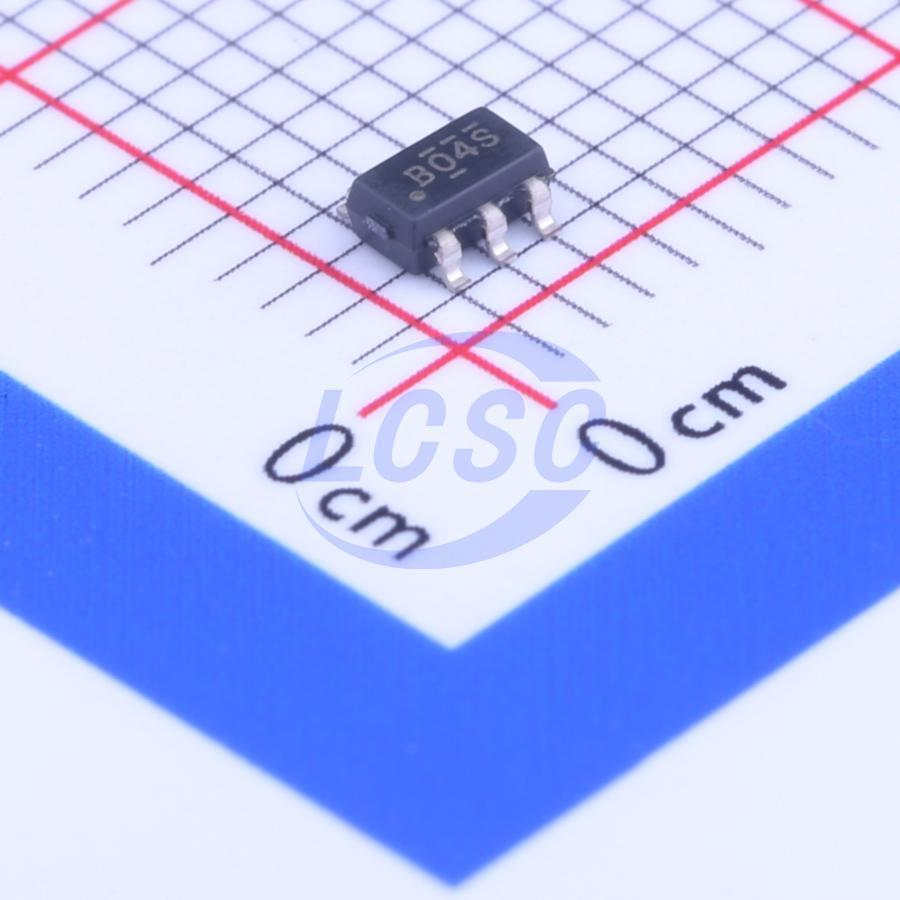

SN74AHCT1G04DBVR
4.5V~5.5V 9ns@5V,50pF 1uA 1 SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
SINGLE INVERTER GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G04DBVR
- Store part #
- C30326
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,675 in stock
#C30326
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.66 | ₹58.30 |
| 50+ | ₹9.26 | ₹463.00 |
| 150+ | ₹8.06 | ₹1,209.00 |
| 500+ | ₹7.16 | ₹3,580.00 |
| 3,000+ | ₹6.11 | ₹18,330.00 |
| 6,000+ | ₹5.76 | ₹34,560.00 |
5 × ₹11.66
₹58.30
excl. GST
₹68.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G04DBVR
₹58.30 for 5 + GST
Specifications
- Logic Family
- 74AHCT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 9ns@5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHCT1G04 contains one gate. The device performs the Boolean function Y = A (overline).
Key features
- Operating Range 4.5-V to 5.5-V
- Max propagation delay (tₚd) of 7.5 ns at 5-V
- Low Power Consumption, 10-μA Max supply current (ICC)
- ±8-mA Output Drive at 5-V
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHCT1G04DBVT#C2865592TI · SOT-23-5 | TI | SOT-23-5 | 2 | ₹130.94 · 2 in stock | View |
 | SN74AHC1G04DBVR#C19829666TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 38,300 | ₹6.69 · 38,300 in stock | View |
 | SN74AHCT1G04DB(LX)#C41361215lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,480 | ₹6.87 · 2,480 in stock | View |
| AiP74AHCT1G04GB235.TR#C52121067Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 1,335 | ₹12.00 · 1,335 in stock | View | |
