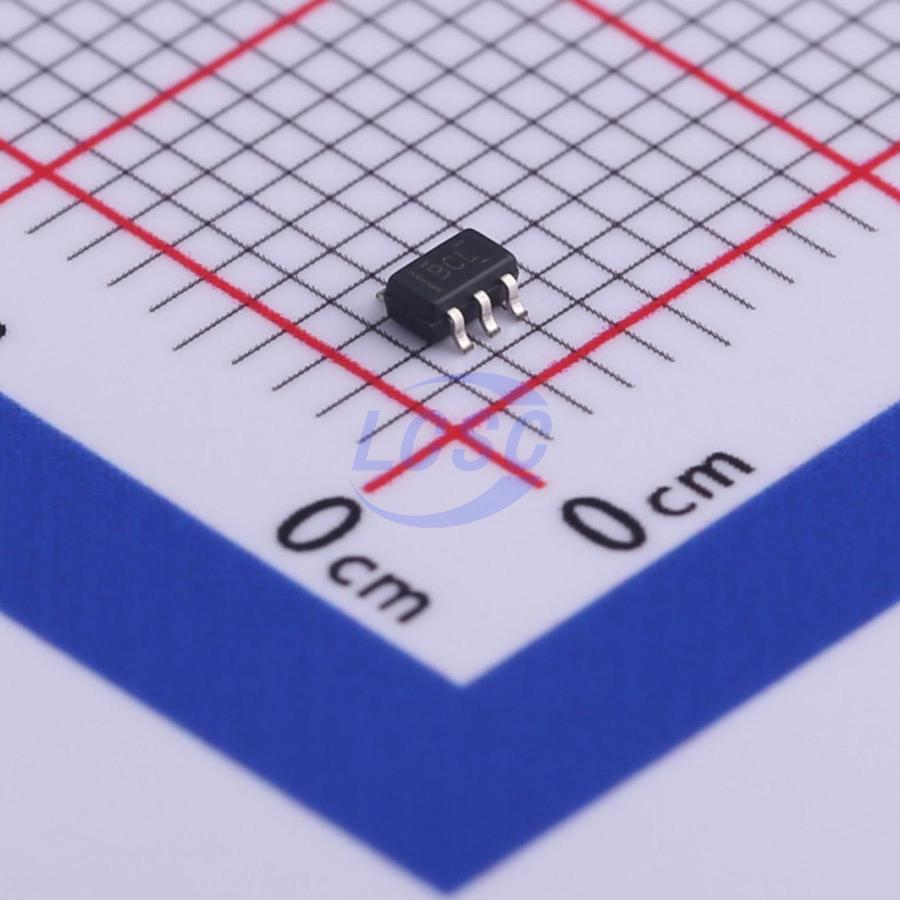

SN74AHCT1G04DCKR
4.5V~5.5V 9ns@5V,50pF 1uA 1 SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single Inverter Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G04DCKR
- Store part #
- C484742
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,335 in stock
#C484742
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.78 | ₹88.90 |
| 50+ | ₹14.20 | ₹710.00 |
| 150+ | ₹12.41 | ₹1,861.50 |
| 500+ | ₹11.06 | ₹5,530.00 |
| 3,000+ | ₹9.14 | ₹27,420.00 |
| 6,000+ | ₹8.60 | ₹51,600.00 |
5 × ₹17.78
₹88.90
excl. GST
₹104.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G04DCKR
₹88.90 for 5 + GST
Specifications
- Logic Family
- 74AHCT
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 9ns@5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 800mV
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.016 g
Overview
The SN74AHCT1G04 contains one gate. The device performs the Boolean function Y = A(overline).
Applications
- Notebook PCs
- Electronic Points of Sale
- Patient Monitoring
- Motor Controls: AC Induction
- Network Switches
- Tests
Key features
- Operating Range 4.5 V to 5.5 V
- Max t(pd) of 7.5 ns at 5 V
- Low Power Consumption, 10 μA Max I(CC)
- ±8 mA Output Drive at 5 V
- Inputs are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AiP74AHCT1G04GC353.TR#C17700028Wuxi I-core Elec · SOT353 | Wuxi I-core Elec | SOT353 | On request | ₹14.14 · 0 in stock | View |
