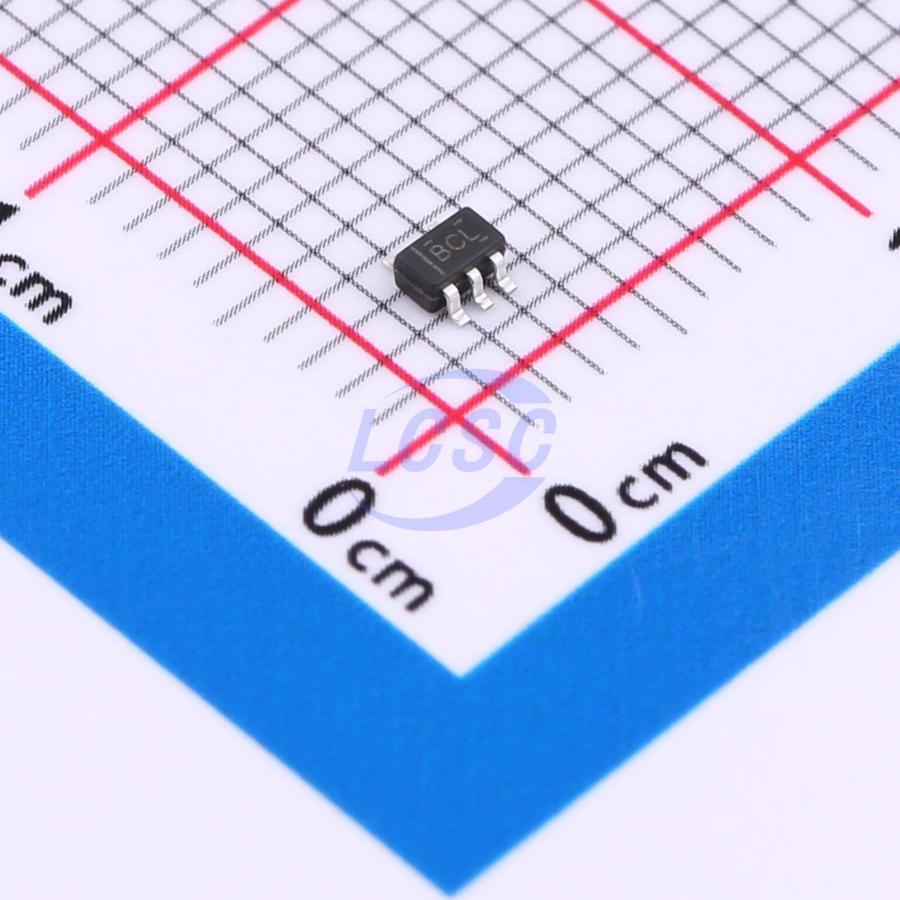

SN74AHCT1G04DCKR-TP
4.5V~5.5V 5.5ns@5V,50pF 1uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
SINGLE INVERTER GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHCT1G04DCKR-TP
- Store part #
- C42460246
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C42460246
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.41 | ₹34.10 |
| 100+ | ₹3.35 | ₹335.00 |
| 300+ | ₹3.29 | ₹987.00 |
| 1,000+ | ₹3.24 | ₹3,240.00 |
10 × ₹3.41
₹34.10
excl. GST
₹40.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G04DCKR-TP
₹34.10 for 10 + GST
Specifications
- Logic Family
- 74AHCT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 5.5ns@5V,50pF
- Output Logic Level - Low
- 100mV;360mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V~4.5V;3.94V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The SN74AHCT1G04DCKR-TP is a Single inverter gate, which provides the Function Y = A（overline）
Applications
- Motor control: Communication induction
- Graphics card
- Advanced Driver Assistance Systems (ADAS)
- Motor Drive&Control
- DLP positive projection system
- Server motherboard
Key features
- Operation Voltage Range: 4.5 ~ 5.5 V
- Low Power Dissipation: ICC = 1 μA (Max.) @ 25 ℃
- High Speed: tpD = 7.5 ns (Typ)
- ESD Protection Exceeds JESD 22 - 2000 - V Human - Body Model (A114 - A) - 200 - V Machine Model (A115 - A) - 1000 - V Charged - Device Model (C101)
