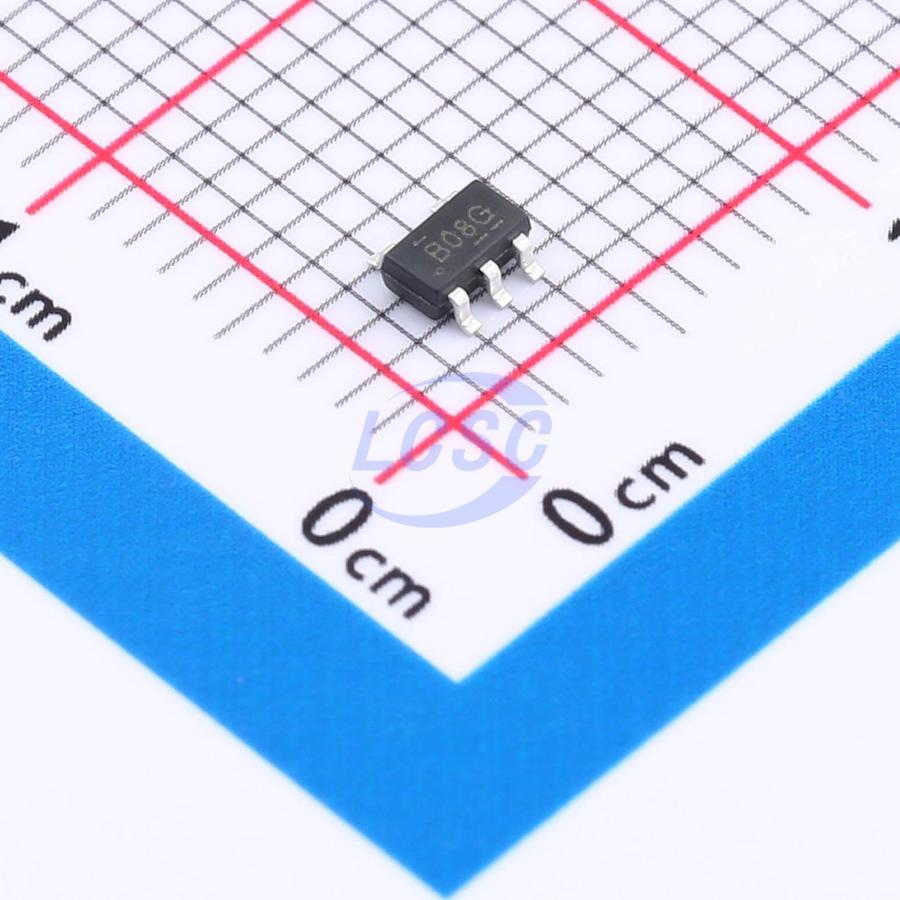

SN74AHCT1G08DBVR-TP
1uA 4.5V~5.5V 7.9ns@5V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
2-INPUT AND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHCT1G08DBVR-TP
- Store part #
- C42460252
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,120 in stock
#C42460252
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.23 | ₹42.30 |
| 100+ | ₹4.13 | ₹413.00 |
| 300+ | ₹4.06 | ₹1,218.00 |
| 1,000+ | ₹4.00 | ₹4,000.00 |
10 × ₹4.23
₹42.30
excl. GST
₹49.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G08DBVR-TP
₹42.30 for 10 + GST
Specifications
- Logic Family
- 74AHCT
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V~4.5V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 4.5V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 8mA
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.9ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The SN74AHCT1G08DBVR-TP is a 2-input AND gate which provides the 3-Function Y = A × B
Applications
- Motor control: Communication induction
- Graphics card
- Advanced Driver Assistance Systems (ADAS)
- Motor Drive&Control
- DLP positive projection system
- Server motherboard
Key features
- Operation Voltage Range: 4.5~5.5V
- Low Power Dissipation: ICC = 1μA (Max.) @25°C
- ±8mA output drive at 5V
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT1G08W5-TP#C54780775TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.85 · 2,960 in stock | View |
 | 74AHCT1G08GV-TP#C54780772TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,930 | ₹5.85 · 2,930 in stock | View |
 | TC7SET08F-TP#C54780766TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,750 | ₹5.89 · 2,750 in stock | View |
 | NC7ST08M5X-TP#C54780795TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹6.42 · 3,000 in stock | View |
