UMWDatasheet (PDF)

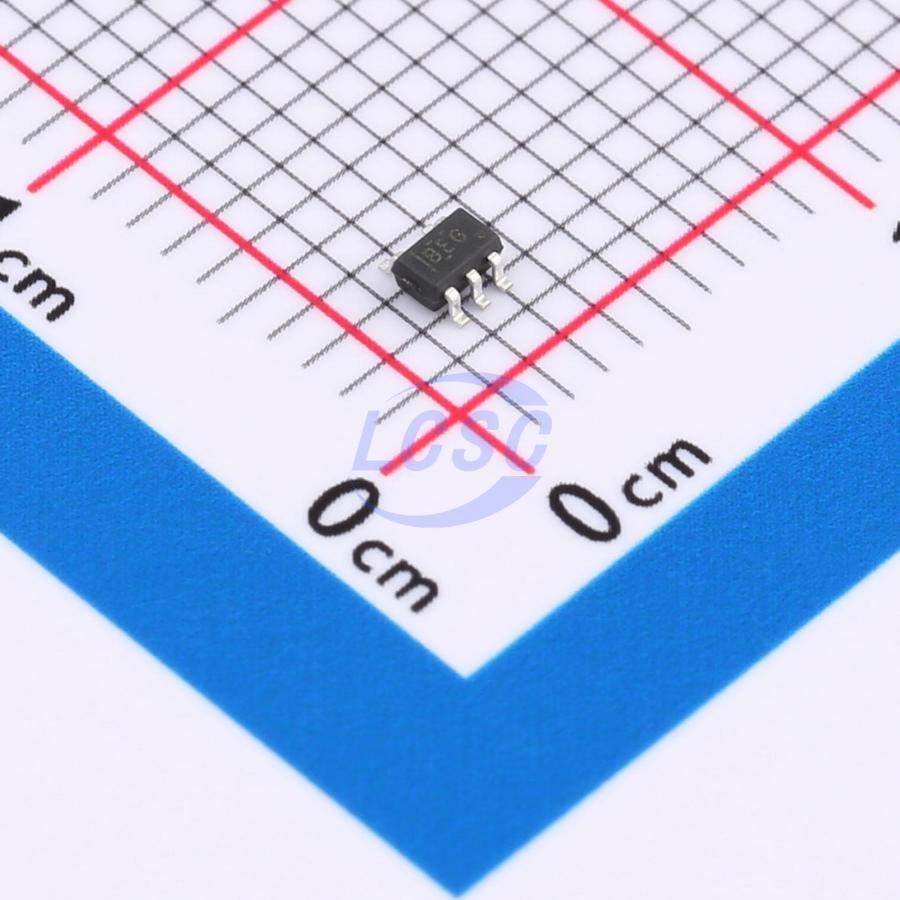

SN74AHCT1G08DCKR(UMW)
TTL-compatible CMOS 4.5V~5.5V 10ns@5V,50pF 10uA SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single 2-input AND Gate
- Manufacturer
- UMW
- Manufacturer part #
- SN74AHCT1G08DCKR(UMW)
- Store part #
- C20617898
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,020 in stock
#C20617898
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.43 | ₹64.30 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.35 | ₹1,305.00 |
| 3,000+ | ₹3.84 | ₹11,520.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹6.43
₹64.30
excl. GST
₹75.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G08DCKR(UMW)
₹64.30 for 10 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 10ns@5V,50pF
- Output Logic Level - Low
- 100mV;440mV
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.94V;4.4V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The SN74AHCT1G08 device is a single 2-input positive AND gate. The device performs the Boolean function Y = A • B or Y = A + B in positive logic. Low lcc current allows this device to be used in power-sensitive or battery-powered applications.
Key features
- Operating Range: 4.5 V to 5.5 V
- Maximum tpd of 7.1 ns at 5 V
- Low Power Consumption: Maximum ICC of 10 μA
- ±8 mA Output Drive at 5 V
- Inputs are TTL-Voltage Compatible
- Packages are SC70-5, SOT23-5 or small DFN6 MSL3(SC70-5, SOT23-5, DFN6(1*1.5))
