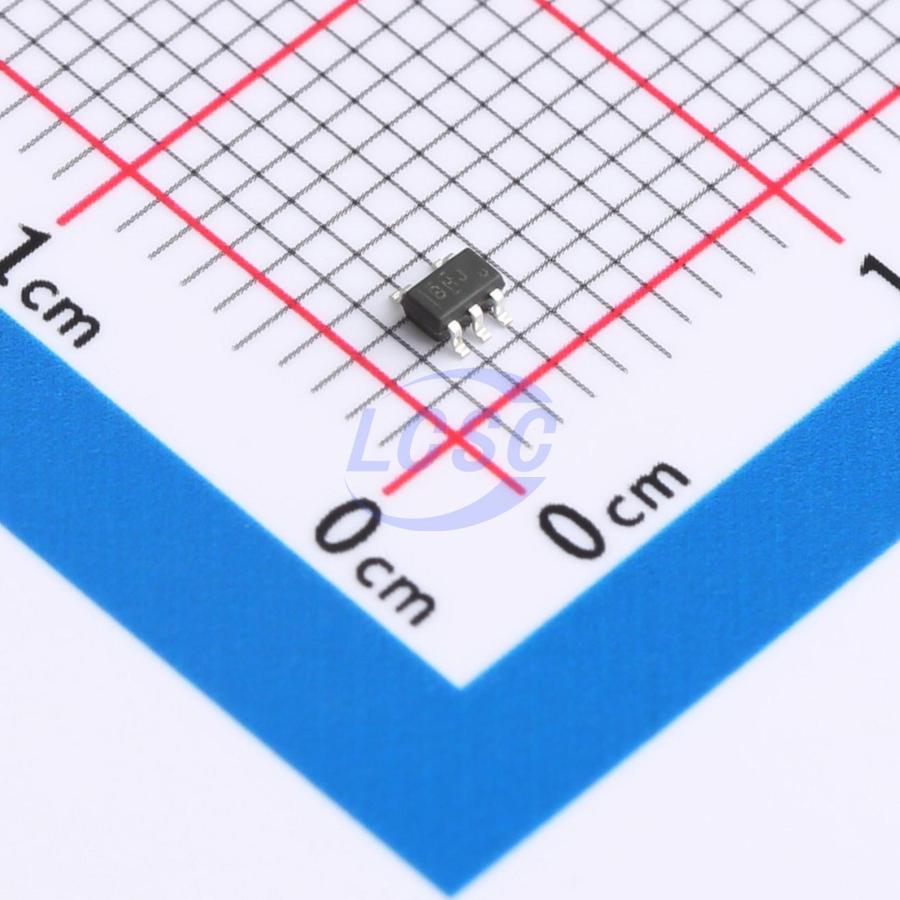

SN74AHCT1G86DCKR(UMW)
TTL-compatible CMOS 4.5V~5.5V 10ns@5V,50pF 10uA SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single 2-input Exclusive-OR Gate
- Manufacturer
- UMW
- Manufacturer part #
- SN74AHCT1G86DCKR(UMW)
- Store part #
- C20617899
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,150 in stock
#C20617899
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.79 | ₹57.90 |
| 100+ | ₹4.58 | ₹458.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.52 | ₹10,560.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.98 | ₹26,820.00 |
10 × ₹5.79
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G86DCKR(UMW)
₹57.90 for 10 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 10ns@5V,50pF
- Output Logic Level - Low
- 440mV
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
The SN74AHCT1G86 is a single 2-input exclusive OR gate. The device performs the Boolean function Y = A ⊕ B or Δ = A(overline)B + A B(overline) in positive logic.
Key features
- Operating Range of 4.5V to 5.5V
- Max tpd of 8ns at 5V
- Low Power Consumption, 10μA Maximum ICC
- 8mA Output Drive at 5V
- Inputs Are TTL-Voltage Compatible
- Packages are SC70-5, SOT23-5 or small DFN6 MSL3(SC70-5, SOT23-5, DFN6 [1×1.5)
