TIDatasheet (PDF)

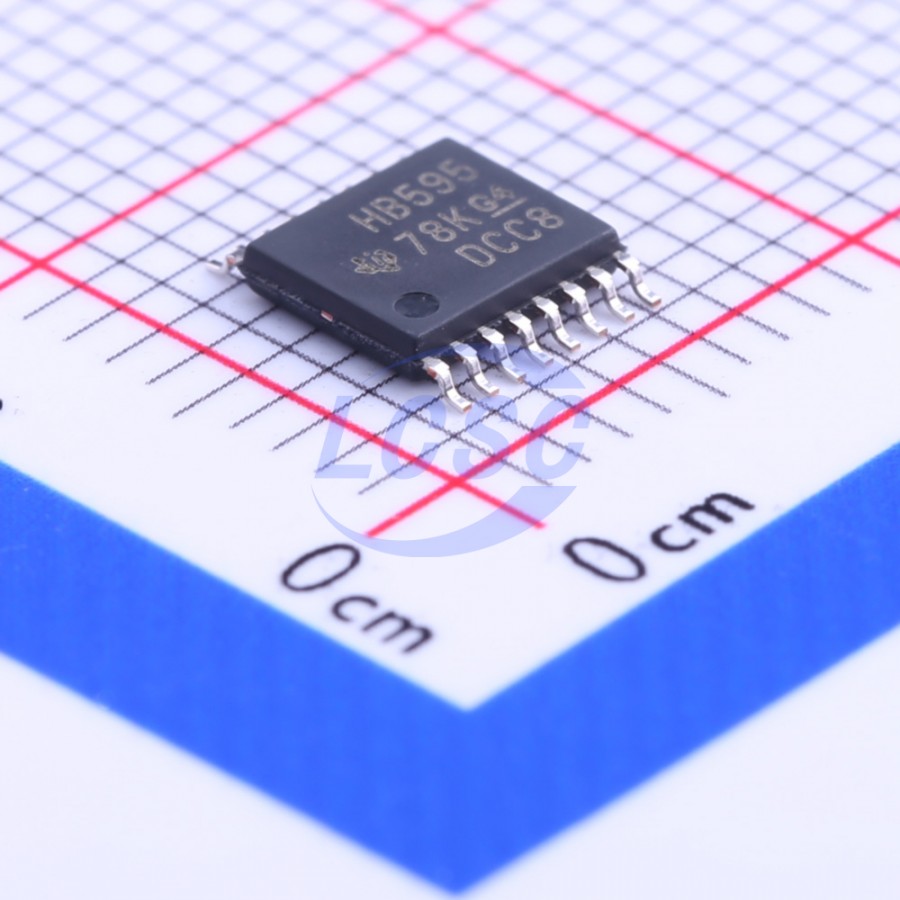

SN74AHCT595PWR
4.5V~5.5V 1 8mA 10.5ns@5V,50pF Serial-to-Serial or Parallel TSSOP-16 Shift Registers RoHS
TSSOP-16ROHS3 CompliantActive
8-Bit Shift Registers With 3-State Output Registers
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT595PWR
- Store part #
- C202237
- Package / case
- TSSOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,490 in stock
#C202237
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.14 | ₹235.70 |
| 50+ | ₹37.16 | ₹1,858.00 |
| 150+ | ₹32.89 | ₹4,933.50 |
| 500+ | ₹27.56 | ₹13,780.00 |
| 2,000+ | ₹25.18 | ₹50,360.00 |
| 4,000+ | ₹23.76 | ₹95,040.00 |
5 × ₹47.14
₹235.70
excl. GST
₹278.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHCT595PWR
₹235.70 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Elements
- 1
- Output Current
- 8mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 10.5ns@5V,50pF
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
The SNx4AHCT595 devices contain an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. Both the shift register clock (SRCLK) and storage register clock (RCLK) are positive-edge triggered.
Applications
- Network Switches
- Power Infrastructures
- PCs and Notebooks
- LED Displays
- Servers
Key features
- Inputs are TTL-Voltage Compatible
- 8-Bit Serial-In, Parallel-Out Shift
- Shift Register Has Direct Clear
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT595T16-13#C460504DIODES · TSSOP-16 | DIODES | TSSOP-16 | 3,690 | ₹35.19 · 3,690 in stock | View |
 | 74HCT595T16-13#C842461DIODES · TSSOP-16 | DIODES | TSSOP-16 | 1 | ₹66.22 · 1 in stock | View |
| 74HCT4094PWJ#C3304556Nexperia · TSSOP-16 | Nexperia | TSSOP-16 | 17,450 | ₹35.96 · 17,450 in stock | View | |
 | 74HCT595PW,118#C99710Nexperia · TSSOP-16 | Nexperia | TSSOP-16 | 2,469 | ₹67.84 · 2,469 in stock | View |
 | MC74HCT595ADTR2G#C152276onsemi · TSSOP-16 | onsemi | TSSOP-16 | 50 | ₹45.42 · 50 in stock | View |
