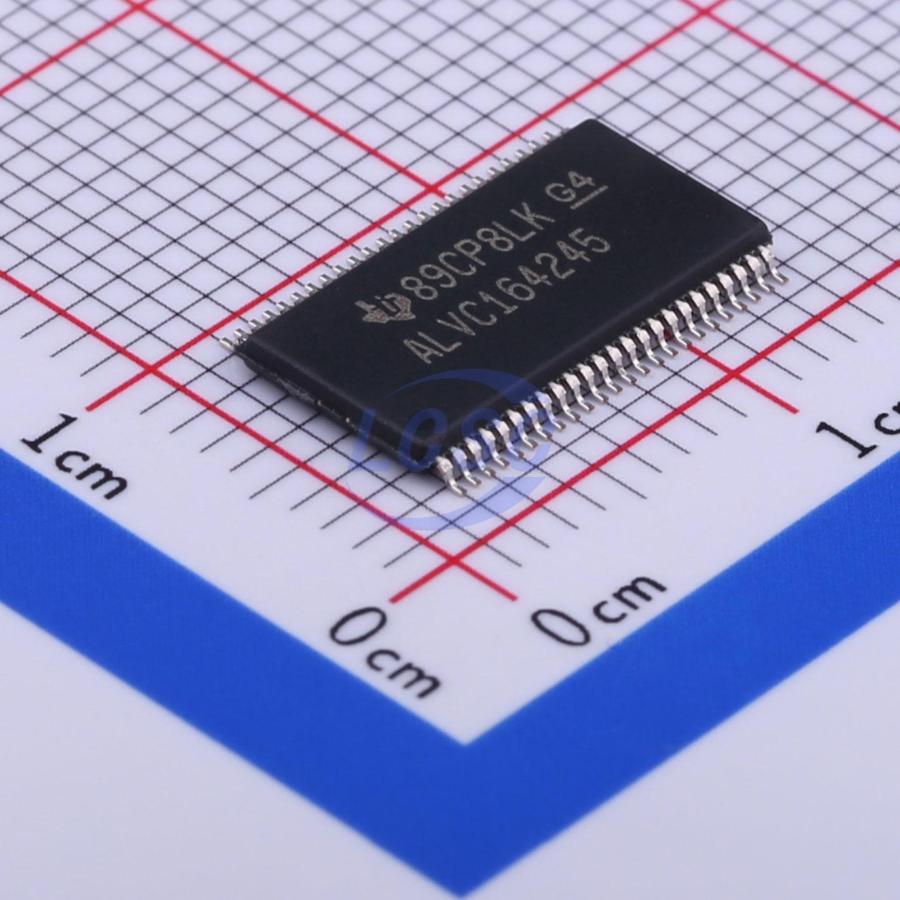

SN74ALVC164245DGGR

This 16-bit (dual-octal) noninverting bus transceiver contains two separate supply rails. B port has VCCB, which is set to operate at 3.3 V and 5 V. A port has VCCA, which is set to operate at 2.5 V and 3.3 V. This allows for translation from a 2.5-V to a 3.3-V environment, and vice versa, or from a 3.3-V to a 5-V environment, and vice versa. The SN74ALVC164245 is designed for asynchronous communication between data buses. The control circuitry (1DIR, 2DIR, and 2OE) is powered by VCCA. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports always is active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

Applications

• Mixed-voltage signal design
• Asynchronous data bus communication between different voltage domains

Key features

• Member of the Texas Instruments Widebus Family
• Max tpd of 5.8 ns at 3.3 V
• ±24-mA Output Drive at 3.3 V
• Control Inputs VIH/VIL Levels Are Referenced to VCCA Voltage
• Latch-Up Performance Exceeds ±50 mA Per JESD 17
