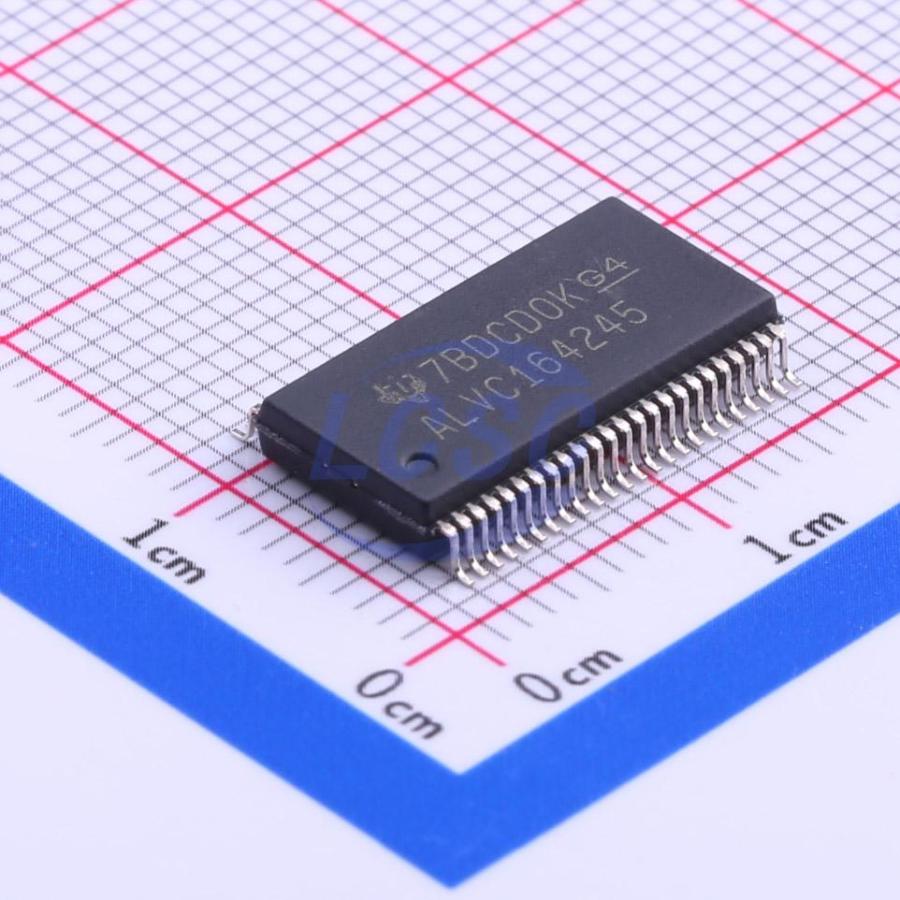

SN74ALVC164245DLR

This 16-bit (dual-octal) noninverting bus transceiver contains two separate supply rails. B port has VCCB which is set to operate at 3.3V and 5V. A port has VCCA which is set to operate at 2.5V and 3.3V. This allows for translation from a 2.5 - V to a 3.3 - V environment, and vice versa, or from a 3.3 - V to a 5 - V environment, and vice versa. The SN74ALVC164245 is designed for asynchronous communication between data buses. The control circuitry (1DIR,2DIR,1OE,and 2OE) is powered by VCC. To ensure the high-impedance state during power up or power down, the output-enable (OE) input should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports always is active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

Applications

• Level translation for mixed-voltage signal systems
• Asynchronous communication between data buses

Key features

• Member of the Texas Instruments Widebus Family
• Max tpd of 5.8 ns at 3.3V
• ±24 - mA Output Drive at 3.3V
• Control Inputs VH/VL Levels Are Referenced to VCCA Voltage
• Latch-Up Performance Exceeds 250 mA Per JESD 17
