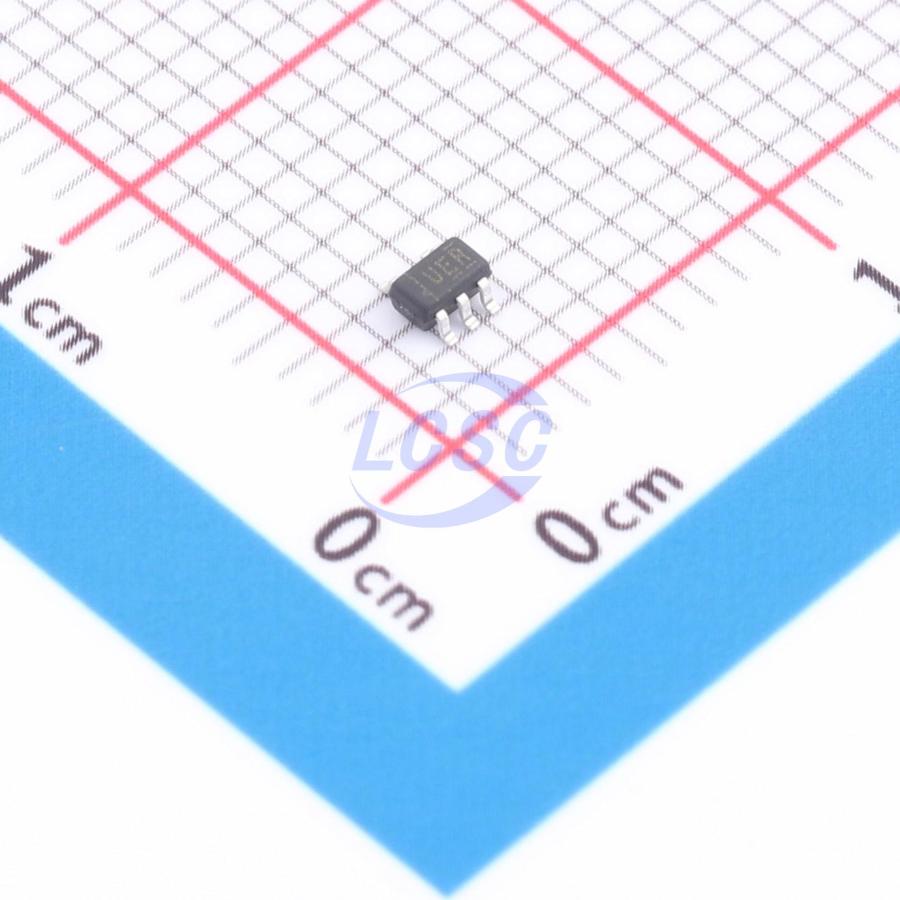

SN74AUC1G08DCKR-TP
500nA 800mV~2.7V 4.7ns@2.7V,30pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUC1G08DCKR-TP
- Store part #
- C54561883
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C54561883
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.36 | ₹66.80 |
| 50+ | ₹10.50 | ₹525.00 |
| 150+ | ₹9.08 | ₹1,362.00 |
| 500+ | ₹8.00 | ₹4,000.00 |
| 3,000+ | ₹7.16 | ₹21,480.00 |
| 6,000+ | ₹6.72 | ₹40,320.00 |
5 × ₹13.36
₹66.80
excl. GST
₹78.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUC1G08DCKR-TP
₹66.80 for 5 + GST
Specifications
- Input Logic Level - High
- 1.6V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~2.7V
- Current - Output High(IOH)
- 3.1mA
- Number of Channels
- 2;1
- Propagation Delay
- 4.7ns@2.7V,30pF
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This is a 2-input AND gate that provides the function Y = A × B, or Y = (Ā + B̄)‾ in positive logic. The device ensures ultralow static and dynamic power consumption across the entire VCC range of 0.8V to 2.7V.
Applications
- AV receivers
- Portable audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal Digital Assistants (PDAs)
- Telecom/server AC/DC power supplies: single controller: analog and digital
- Client and enterprise SSDs
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V ~ 2.7V
- Input tolerant up to 2.7V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (max)
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
