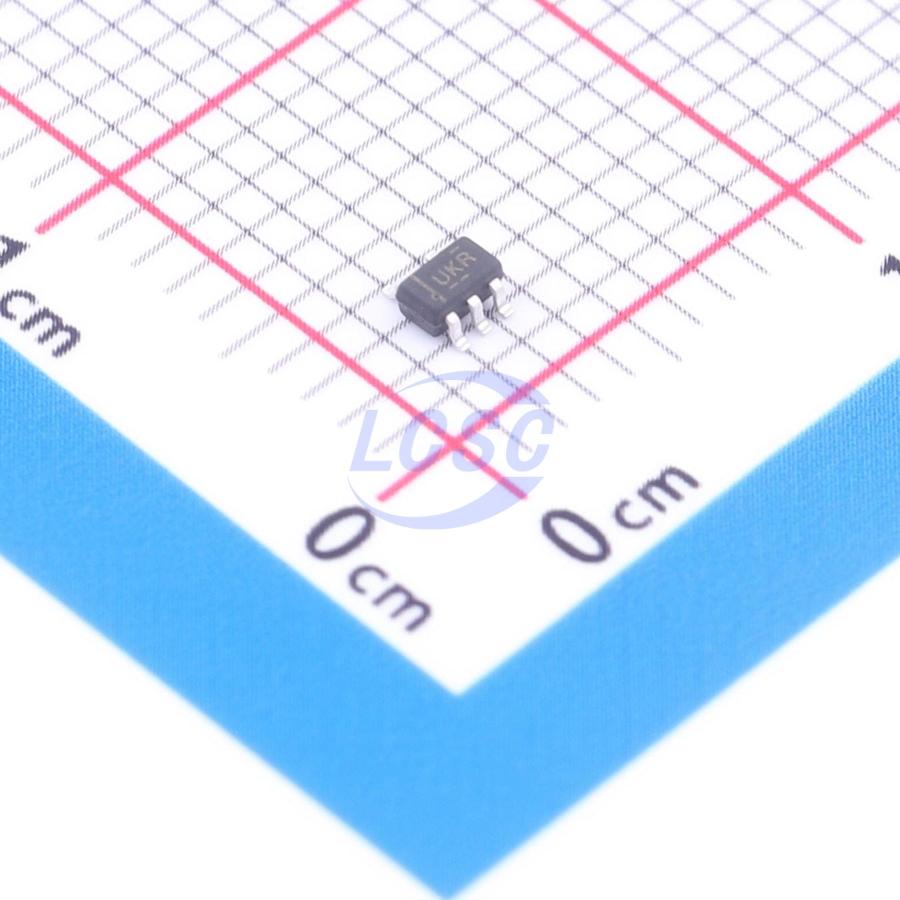

SN74AUC1G240DCKR-TP
Schmitt trigger 800mV~2.7V 4.8ns@2.5V,30pF 500nA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUC1G240DCKR-TP
- Store part #
- C54194995
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C54194995
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.56 | ₹52.80 |
| 50+ | ₹8.32 | ₹416.00 |
| 150+ | ₹7.21 | ₹1,081.50 |
| 500+ | ₹6.38 | ₹3,190.00 |
| 3,000+ | ₹5.70 | ₹17,100.00 |
| 6,000+ | ₹5.37 | ₹32,220.00 |
5 × ₹10.56
₹52.80
excl. GST
₹62.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUC1G240DCKR-TP
₹52.80 for 5 + GST
Specifications
- output type
- Tri-State
- Input Type
- Schmitt trigger
- Voltage - Supply
- 800mV~2.7V
- Output Logic Level - Low
- 100mV;310mV;440mV
- Propagation Delay
- 4.8ns@2.5V,30pF
- Input Logic Level - High
- 1.6V
- Input Logic Level - Low
- 700mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 3.1mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
SN74AUC1G240DCKR - TP is a 1-bit inverting buffer/line driver with 3-state outputs. The device features an output enable (OE) function. When OE is high, the outputs are disabled in a high-impedance state. All inputs incorporate Schmitt-trigger action, allowing the circuit to tolerate slower input rise and fall times.
Applications
- AV receivers
- Portable audio docks
- Blu-ray players and home theater
- Embedded PCs
- Personal digital assistants (PDAs)
- Telecom/server power supplies: AC/DC, single controller: analog and digital
- Solid-state drives (SSDs): client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V ~ 2.7V
- Inputs tolerant up to 2.7V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5pA (max)
- ESD protection exceeds JESD 22:
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
