TECH PUBLICDatasheet (PDF)

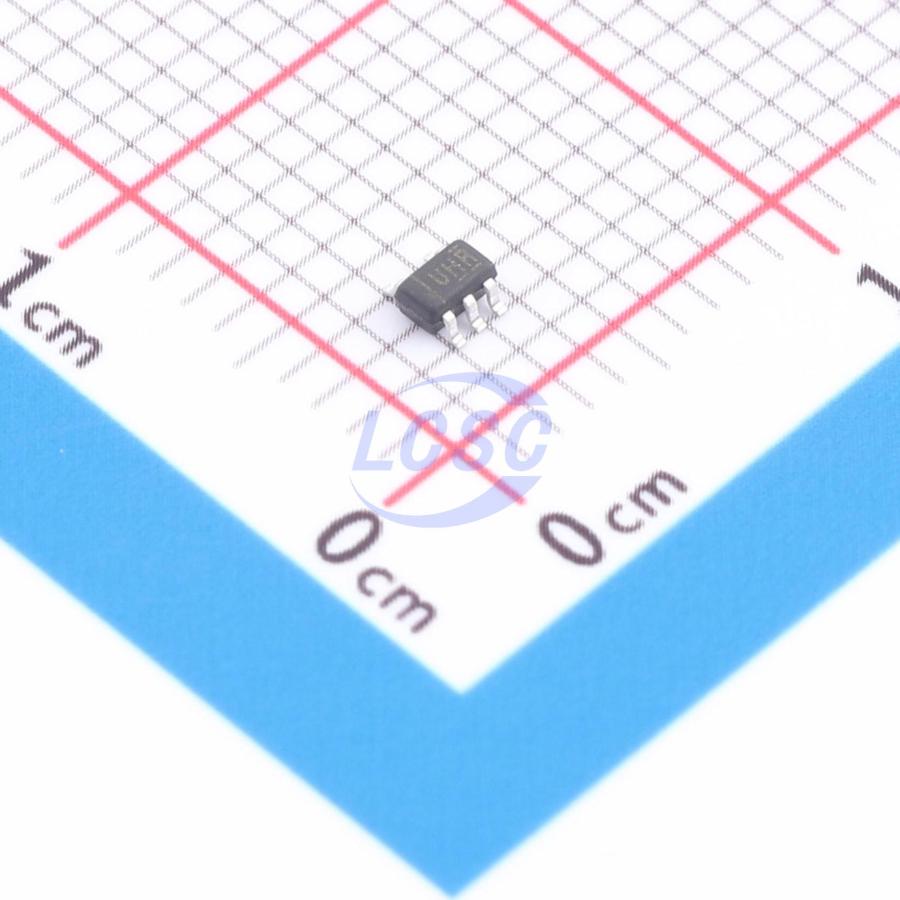

SN74AUC1G86DCKR-TP
500nA 800mV~2.7V 4.4ns@2.7V,30pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUC1G86DCKR-TP
- Store part #
- C54561885
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C54561885
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.69 | ₹53.45 |
| 50+ | ₹8.40 | ₹420.00 |
| 150+ | ₹7.26 | ₹1,089.00 |
| 500+ | ₹6.42 | ₹3,210.00 |
| 3,000+ | ₹5.73 | ₹17,190.00 |
| 6,000+ | ₹5.38 | ₹32,280.00 |
5 × ₹10.69
₹53.45
excl. GST
₹63.07 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUC1G86DCKR-TP
₹53.45 for 5 + GST
Specifications
- Input Logic Level - High
- 1.6V
- Input Logic Level - Low
- 0V;700mV
- Logic Family
- 74AUC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~2.7V
- Number of Channels
- 2;1
- Propagation Delay
- 4.4ns@2.7V,30pF
- Output Logic Level - Low
- 100mV;310mV;440mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This is a single 2-input XOR gate that provides the function Y = A XOR B or Y = AB̄ + ĀB in positive logic. The device ensures very low static and dynamic power consumption across the entire VCC range of 0.8V to 2.7V.
Applications
- AV receivers
- Portable audio docks
- Blu-ray players and home theaters
- Embedded PCs
- Personal Digital Assistants (PDAs)
- Telecom/server power supplies, AC/DC power supplies, single controller, analog and digital
- Client and enterprise SSDs
- Wireless headsets, keyboards and mice
Key features
- Wide supply voltage range: 0.8V ~ 2.7V
- Input accepts voltages up to 2.7V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (maximum)
- ESD protection exceeds JESD 22 standard
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
