TECH PUBLIC

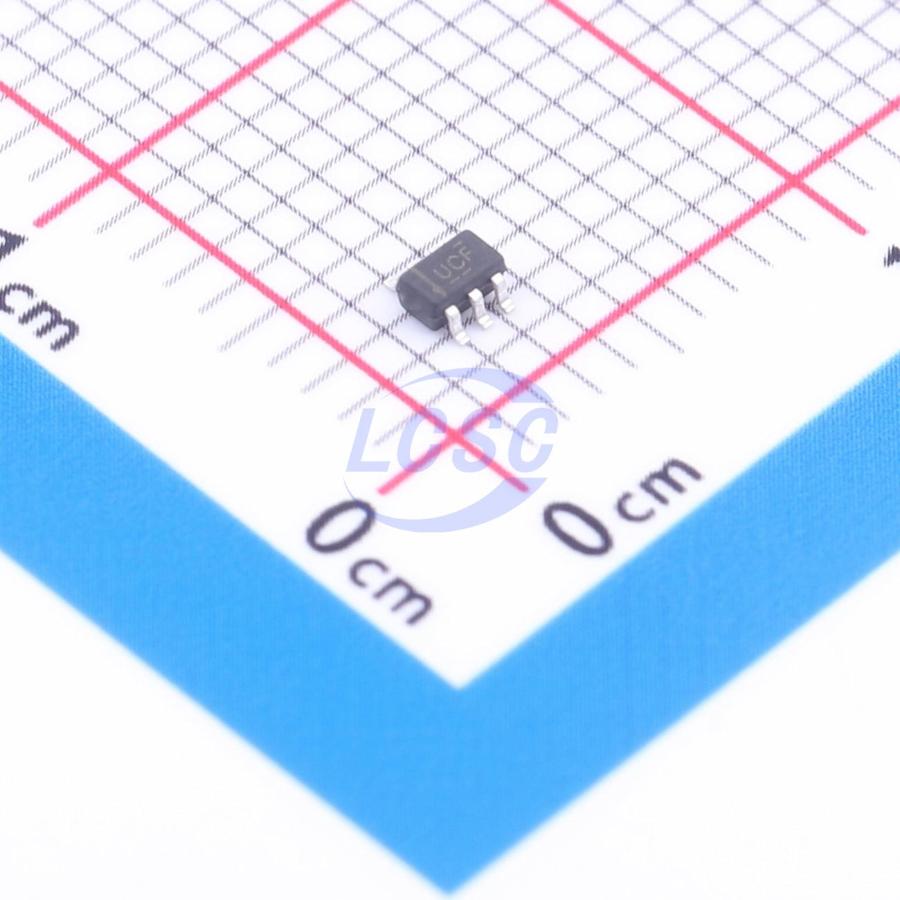

SN74AUC2G04DCKR-TP

800mV~2.7V 7.2ns@2.5V,15pF 10uA 2 SOT-363 Gates and Inverters

SOT-363RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74AUC2G04DCKR-TP
Store part #: C54194996
Package / case: SOT-363
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,980 in stock

#C54194996

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.20	₹66.00
50+	₹10.41	₹520.50
150+	₹9.01	₹1,351.50
500+	₹7.96	₹3,980.00
3,000+	₹7.12	₹21,360.00
6,000+	₹6.71	₹40,260.00

Quantity (min 5, multiples of 5)

5 × ₹13.20

₹66.00

excl. GST

₹77.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUC2G04DCKR-TP

₹66.00 for 5 + GST

Specifications

Logic Family: 74AUC
Voltage - Supply: 800mV~2.7V
Propagation Delay: 7.2ns@2.5V,15pF
Input Logic Level - High: 1.7V
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 10uA
Number of Channels: 2
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.03 g

Overview

SN74AUC2G04DCKR - TP performs the Boolean function Y = A. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging reverse current flow into the device when it is powered down.

Applications

AV receivers
Portable audio docks
Blu-ray players and home theaters
Embedded PCs
Personal Digital Assistants (PDAs)
Telecom/server AC/DC power supplies: single controller: analog and digital
Client and enterprise SSDs
Wireless headsets, keyboards, and mice

Key features

Wide supply voltage range: 0.8V ~ 2.7V
±8mA output drive: Vcc = 1.8V
I<sub>OFF</sub> supports partial power-down mode operation and back-drive protection
Low quiescent current; I<sub>CC</sub> = 10uA (max)
ESD protection exceeds JESD 22
2000-V Human Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged Device Model (C101)
