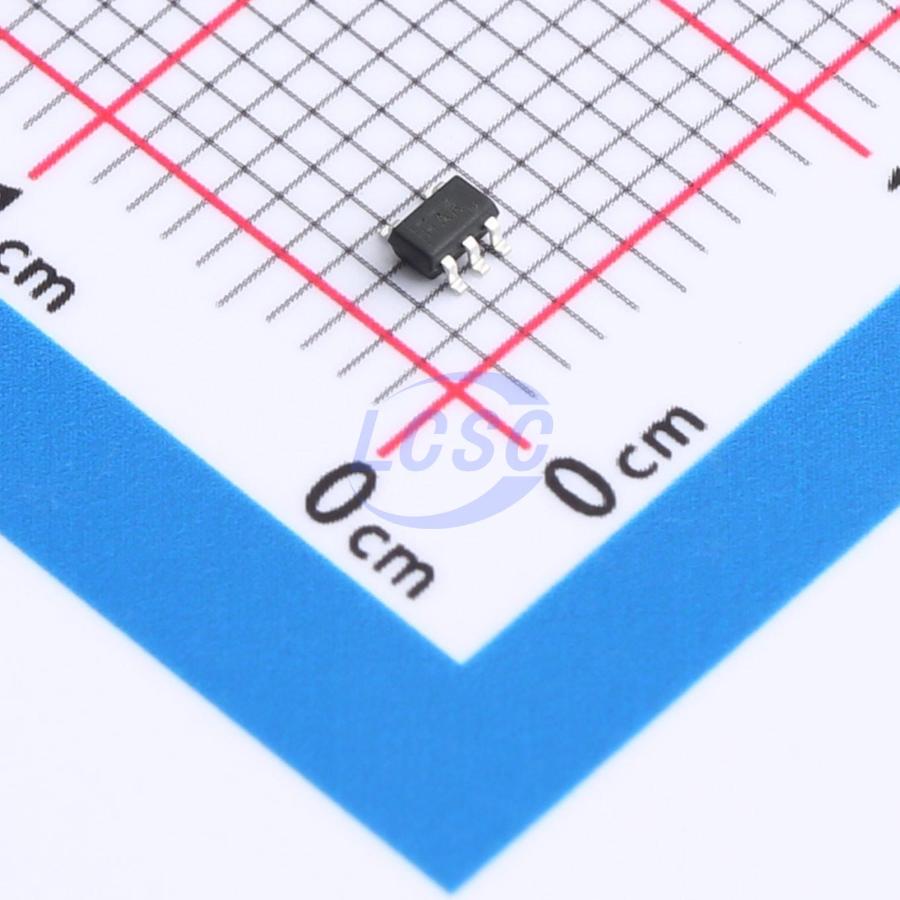

SN74AUP1G00DCKR(UMW)
700nA 800mV~3.6V 5.6ns@3.3V,30pF SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single 2-input NAND Gate
- Manufacturer
- UMW
- Manufacturer part #
- SN74AUP1G00DCKR(UMW)
- Store part #
- C22396373
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,750 in stock
#C22396373
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.32 | ₹53.20 |
| 100+ | ₹4.21 | ₹421.00 |
| 300+ | ₹3.64 | ₹1,092.00 |
| 3,000+ | ₹3.23 | ₹9,690.00 |
| 6,000+ | ₹2.90 | ₹17,400.00 |
| 9,000+ | ₹2.73 | ₹24,570.00 |
10 × ₹5.32
₹53.20
excl. GST
₹62.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G00DCKR(UMW)
₹53.20 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74AUP
- Input Logic Level - Low
- 700mV;900mV
- Input Logic Level - High
- 1.6V;2V
- Quiescent Current(Iq)
- 700nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 450mV
- Propagation Delay
- 5.6ns@3.3V,30pF
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The 74AUP1G00 is a high-performance single 2-input NAND gate operating over a voltage range of 0.8V to 3.6V. The device is fabricated using advanced CMOS technology to achieve ultra-high speed and high output drive capability.
Key features
- Designed for 0.8V to 3.6V VCC operation
- Low quiescent current; Icc = 0.7μA (maximum)
- 4mA balanced sink and source output drive capability
- Near-zero static supply current
- Reduced system power consumption requirements
- Lead-free and RoHS compliant
- Miniature SC70-5, SOT23-5, and DFN6 (1.0×1.5) packages
