UMWDatasheet (PDF)

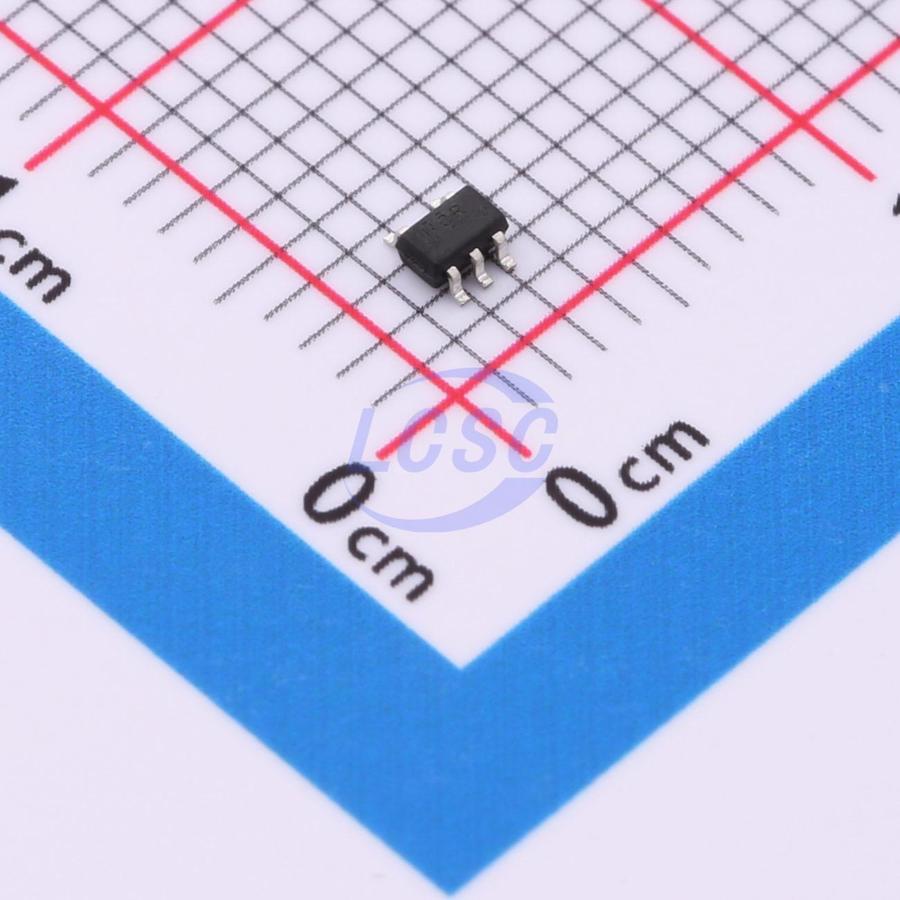

SN74AUP1G04DCKR(UMW)
800mV~3.6V 2.2ns@3.3V,30pF 700nA 1 SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single Inverter
- Manufacturer
- UMW
- Manufacturer part #
- SN74AUP1G04DCKR(UMW)
- Store part #
- C22396372
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,330 in stock
#C22396372
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.48 | ₹44.80 |
| 100+ | ₹3.94 | ₹394.00 |
| 300+ | ₹3.66 | ₹1,098.00 |
| 3,000+ | ₹3.47 | ₹10,410.00 |
| 6,000+ | ₹3.29 | ₹19,740.00 |
| 9,000+ | ₹3.21 | ₹28,890.00 |
10 × ₹4.48
₹44.80
excl. GST
₹52.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G04DCKR(UMW)
₹44.80 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Voltage - Supply
- 800mV~3.6V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 2.2ns@3.3V,30pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 900mV
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 2.92V
- Quiescent Current(Iq)
- 700nA
- Number of Channels
- 1
- Current - Output High(IOH)
- 4mA
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
74AUP1G04 is a high-performance single inverter operating over a voltage range of 0.8V to 3.6V. The device is manufactured using advanced CMOS technology to achieve ultra-high speed and strong output drive capability.
Key features
- Designed for 0.8V to 3.6V VCC operating voltage
- Low quiescent current; ICC = 0.7μA (maximum)
- 4mA balanced output sink and source current capability
- Near-zero static supply current, significantly reducing system power consumption requirements
- Lead-free, RoHS compliant
- Available in compact SC70-5, SOT23-5, and DFN6 (1.0×1.5) packages
