TECH PUBLIC

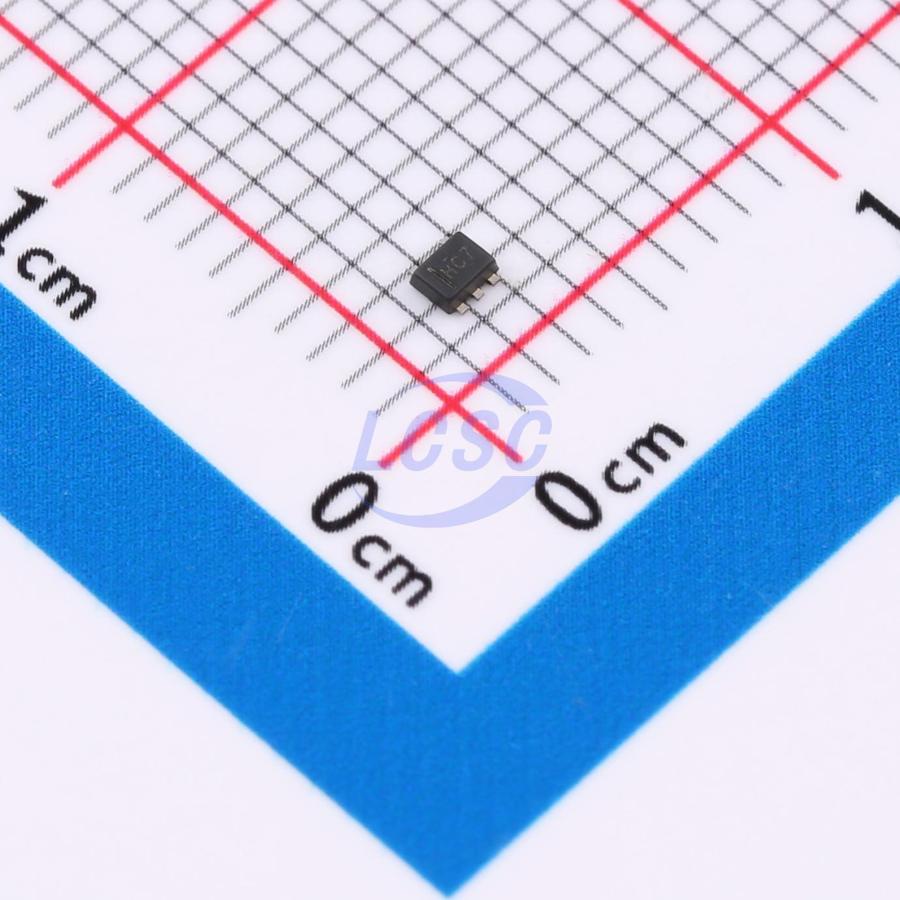

SN74AUP1G04DRLR-TP

800mV~3.6V 3.2ns@3.3V,5pF 500nA 1 SOT553 Gates and Inverters RoHS

SOT553ROHS CompliantActive

SINGLE INVERTER GATE

Manufacturer: TECH PUBLIC
Manufacturer part #: SN74AUP1G04DRLR-TP
Store part #: C49230995
Package / case: SOT553
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,660 in stock

#C49230995

Stock & price checked 47 h ago

Quantity	Unit price	Pack price
5+	₹11.76	₹58.80
50+	₹10.33	₹516.50
150+	₹9.62	₹1,443.00
500+	₹9.08	₹4,540.00
2,500+	₹8.65	₹21,625.00
4,000+	₹8.43	₹33,720.00

Quantity (min 5, multiples of 5)

5 × ₹11.76

₹58.80

excl. GST

₹69.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

SN74AUP1G04DRLR-TP

₹58.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74AUP
Voltage - Supply: 800mV~3.6V
Propagation Delay: 3.2ns@3.3V,5pF
Output Logic Level - Low: 440mV
Features: Power shutdown protection;Power-off protection function
Input Logic Level - High: 2V
Input Logic Level - Low: 900mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.6V
Quiescent Current(Iq): 500nA
Number of Channels: 1
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.02 g

Overview

SN74AUP1G04 is a single inverter gate providing the Y = Ā function. The device features a power-off protection circuit to prevent damage during power-down conditions.

Applications

AV receivers
Portable audio docks
Blu-ray players and home theater
Embedded PCs
Personal digital assistants (PDAs)
Power supplies: telecom/server AC/DC power supplies: single controller: analog and digital
Solid-state drives (SSDs): client and enterprise
Wireless headsets, keyboards, and mice

Key features

Wide supply voltage range: 0.8V to 3.6V
Inputs accept voltages up to 3.6V
I_OFF supports partial power-down mode
Low quiescent current: I_CC = 0.5μA (maximum)
ESD protection exceeds JESD 22: 2000-V Human Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged Device Model (C101)
