TECH PUBLICDatasheet (PDF)

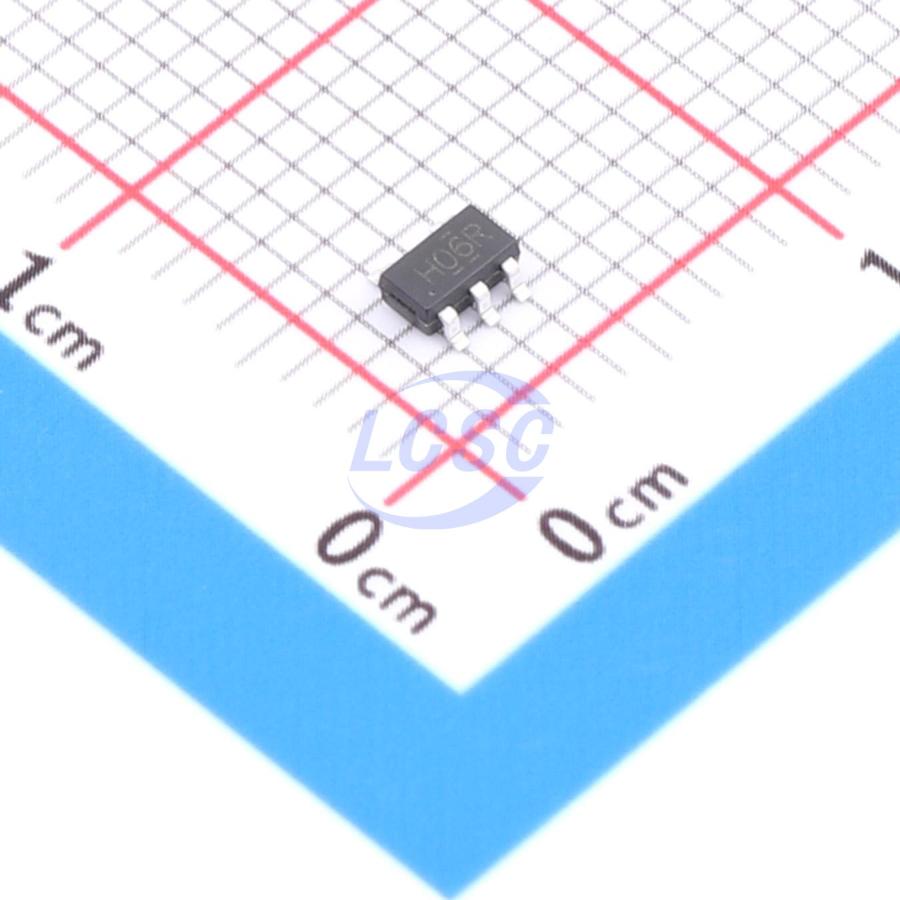

SN74AUP1G06DBVR-TP
500nA 800mV~3.6V 1 2.2ns@3.3V,5pF SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G06DBVR-TP
- Store part #
- C49333171
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C49333171
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.84 | ₹98.40 |
| 100+ | ₹7.78 | ₹778.00 |
| 300+ | ₹6.75 | ₹2,025.00 |
| 3,000+ | ₹5.98 | ₹17,940.00 |
| 6,000+ | ₹5.36 | ₹32,160.00 |
| 9,000+ | ₹5.05 | ₹45,450.00 |
10 × ₹9.84
₹98.40
excl. GST
₹116.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G06DBVR-TP
₹98.40 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Number of Channels
- 1
- Propagation Delay
- 2.2ns@3.3V,5pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The SN74AUP1G06 is a single inverter buffer with open-drain output, providing the function Y = Ā in positive logic. The open-drain output can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theater systems
- Embedded PCs
- Personal digital assistants
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current: I_CC = 0.5μA (maximum)
- ESD protection exceeds JESD 22 (2000V HBM, 200V MM, 1000V CDM)
