UMW

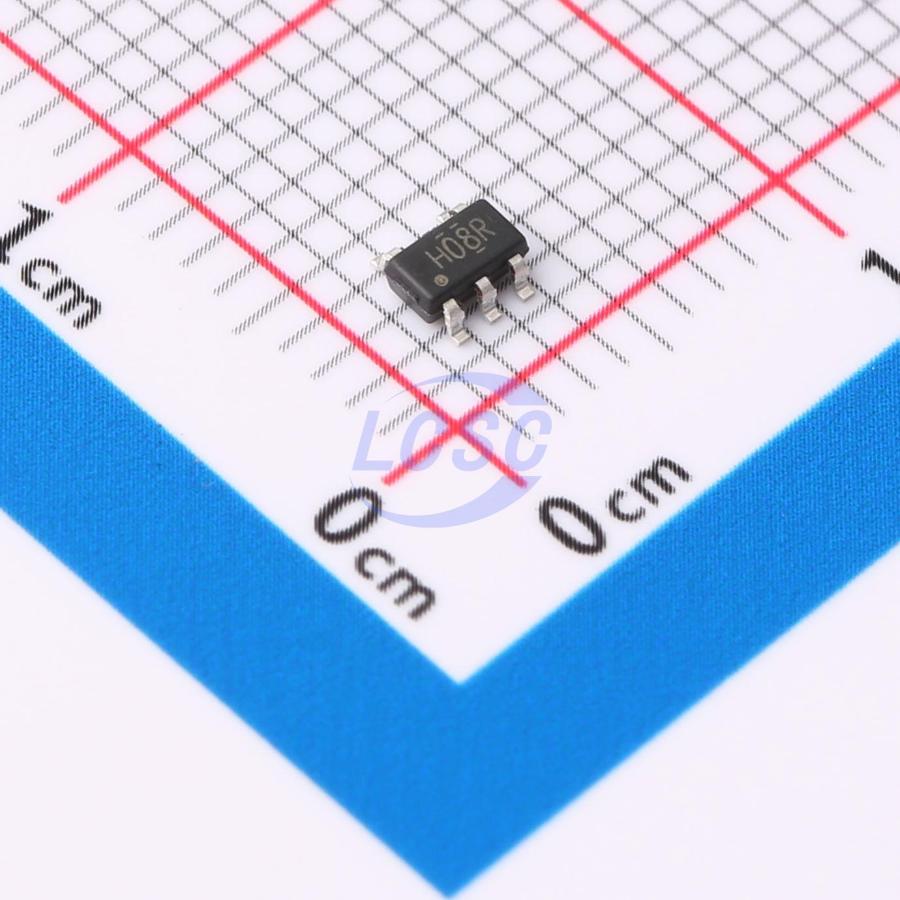

SN74AUP1G08DBVR(UMW)

700nA 800mV~3.6V 4.8ns@3.3V,30pF SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

Single 2-Input AND Gate

Manufacturer: UMW
Manufacturer part #: SN74AUP1G08DBVR(UMW)
Store part #: C7394026
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,280 in stock

#C7394026

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.26	₹62.60
100+	₹4.96	₹496.00
300+	₹4.31	₹1,293.00
3,000+	₹3.83	₹11,490.00
6,000+	₹3.43	₹20,580.00
9,000+	₹3.25	₹29,250.00

Quantity (min 10, multiples of 10)

10 × ₹6.26

₹62.60

excl. GST

₹73.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G08DBVR(UMW)

₹62.60 for 10 + GST

Specifications

Logic Family: 74AUP
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 1.6V;2V
Input Logic Level - Low: 700mV;900mV
Output Logic Level - High: 2.55V
Quiescent Current(Iq): 700nA
Voltage - Supply: 800mV~3.6V
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Propagation Delay: 4.8ns@3.3V,30pF
Output Logic Level - Low: 440mV
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

The SN74AUP1G08 is a single 2-input AND gate operating over a voltage range of 0.8V to 3.6V. Utilizing advanced CMOS technology to achieve ultra-high speed with high output drive capability.

Key features

Designed for 0.8V to 3.6V VCC operating voltage
Low quiescent current; Icc = 0.7μA (maximum)
4mA balanced sink and source output current capability
Near-zero quiescent supply current, significantly reducing system power consumption requirements
Lead-free and RoHS compliant
