UMWDatasheet (PDF)

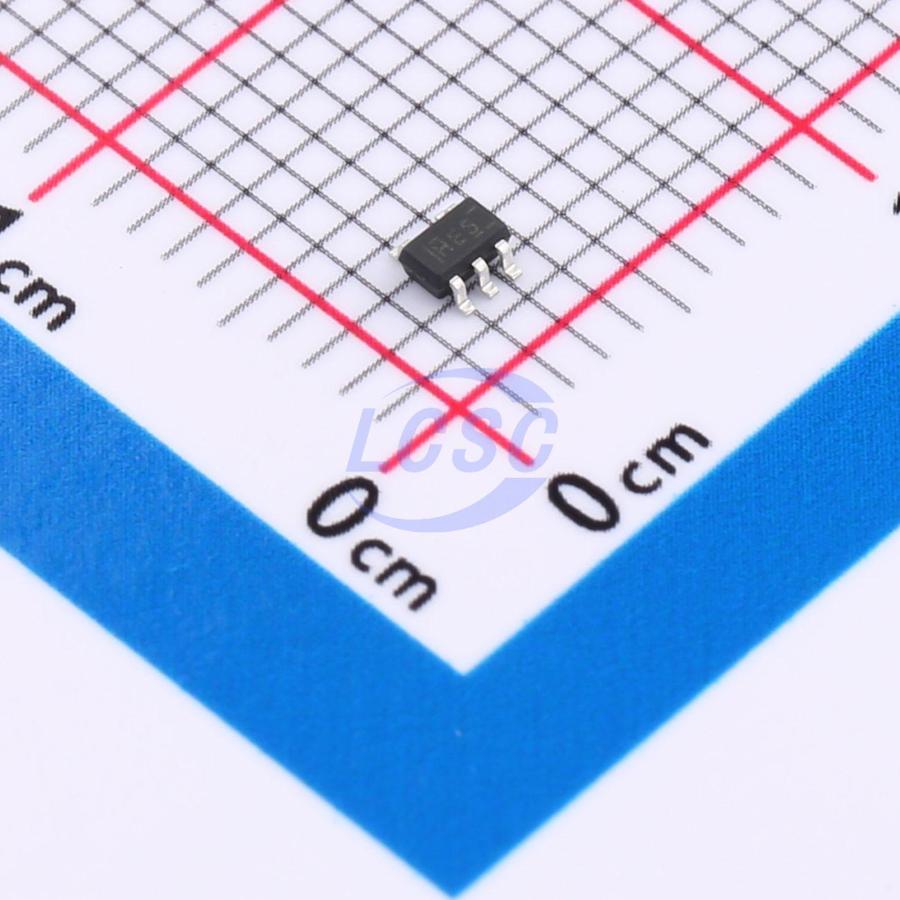

SN74AUP1G08DCKR(UMW)
700nA 800mV~3.6V 4.9ns@3.3V,15pF SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single 2-Input AND Gate
- Manufacturer
- UMW
- Manufacturer part #
- SN74AUP1G08DCKR(UMW)
- Store part #
- C7394036
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,110 in stock
#C7394036
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.31 | ₹53.10 |
| 100+ | ₹4.15 | ₹415.00 |
| 300+ | ₹3.57 | ₹1,071.00 |
| 3,000+ | ₹3.15 | ₹9,450.00 |
| 6,000+ | ₹2.80 | ₹16,800.00 |
| 9,000+ | ₹2.63 | ₹23,670.00 |
10 × ₹5.31
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G08DCKR(UMW)
₹53.10 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.6V;2V
- Input Logic Level - Low
- 700mV;900mV
- Quiescent Current(Iq)
- 700nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Propagation Delay
- 4.9ns@3.3V,15pF
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
The SN74AUP1G08 is a single 2-input AND gate operating over a voltage range of 0.8V to 3.6V. Utilizing advanced CMOS technology to achieve ultra-high speed with high output drive capability.
Key features
- Designed for 0.8V to 3.6V VCC operating voltage
- Low quiescent current; Icc = 0.7μA (maximum)
- 4mA balanced sink and source output current capability
- Near-zero quiescent supply current, significantly reducing system power consumption requirements
- Lead-free and RoHS compliant
