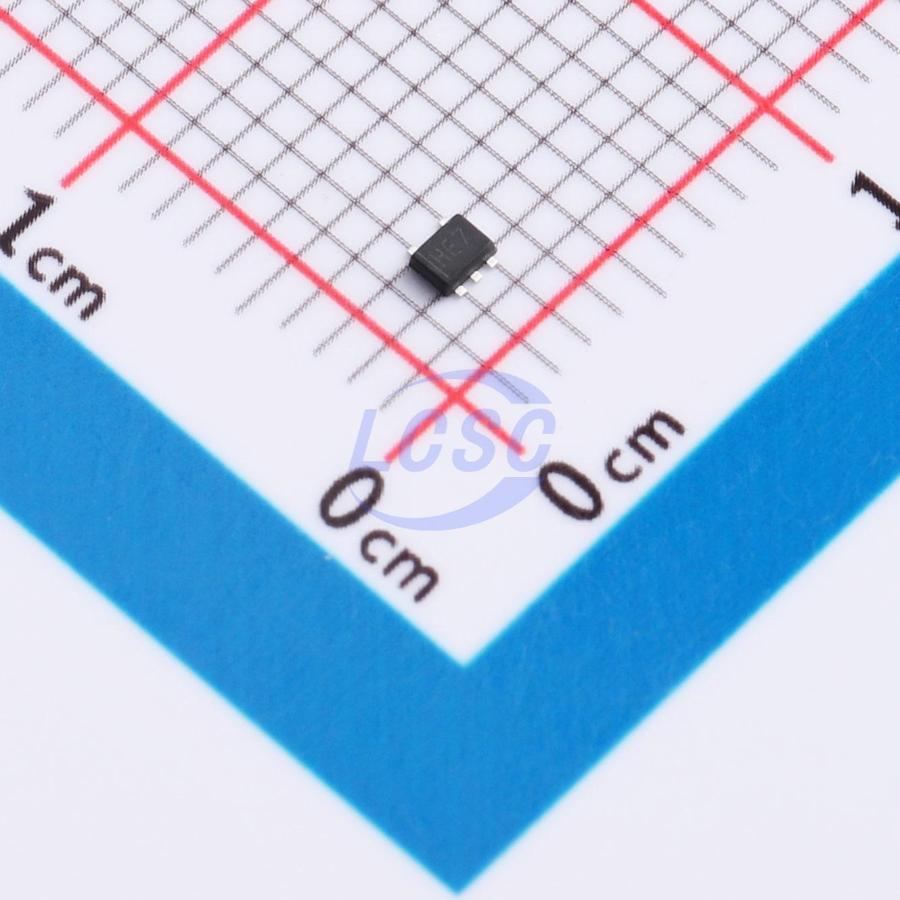

SN74AUP1G08DRLR-TP
500nA 800mV~3.6V 4.7ns@3.3V,30pF SOT-553 Gates and Inverters RoHS
SOT-553ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G08DRLR-TP
- Store part #
- C49333174
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,970 in stock
#C49333174
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.78 | ₹48.90 |
| 50+ | ₹8.59 | ₹429.50 |
| 150+ | ₹7.99 | ₹1,198.50 |
| 500+ | ₹7.54 | ₹3,770.00 |
| 2,500+ | ₹7.18 | ₹17,950.00 |
| 4,000+ | ₹7.01 | ₹28,040.00 |
5 × ₹9.78
₹48.90
excl. GST
₹57.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74AUP1G08DRLR-TP
₹48.90 for 5 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74AUP
- Input Logic Level - Low
- 900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Propagation Delay
- 4.7ns@3.3V,30pF
- Output Logic Level - Low
- 440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
SN74AUP1G08 is a single 2-input AND gate that performs the function Y = A · B or Y = A + B in positive logic. This device ensures ultralow static and dynamic power consumption across the entire VCC voltage range of 0.8V to 3.6V.
Applications
- Audio/Video Receivers
- Audio Docking Stations
- Blu-ray Players & Home Theater Systems
- Embedded PCs
- Personal Digital Assistants
- Telecom/Server AC/DC Power Supplies
- Solid State Drives
- Wireless Headsets, Keyboards & Mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; maximum I<sub>CC</sub> = 0.5μA
- ESD protection exceeds JESD 22
- Human Body Model: 2000V
- Machine Model: 200V
- Charged Device Model: 1000V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74AUP1G08X5#C49333196TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 4,000 | ₹11.55 · 4,000 in stock | View |
