UMW

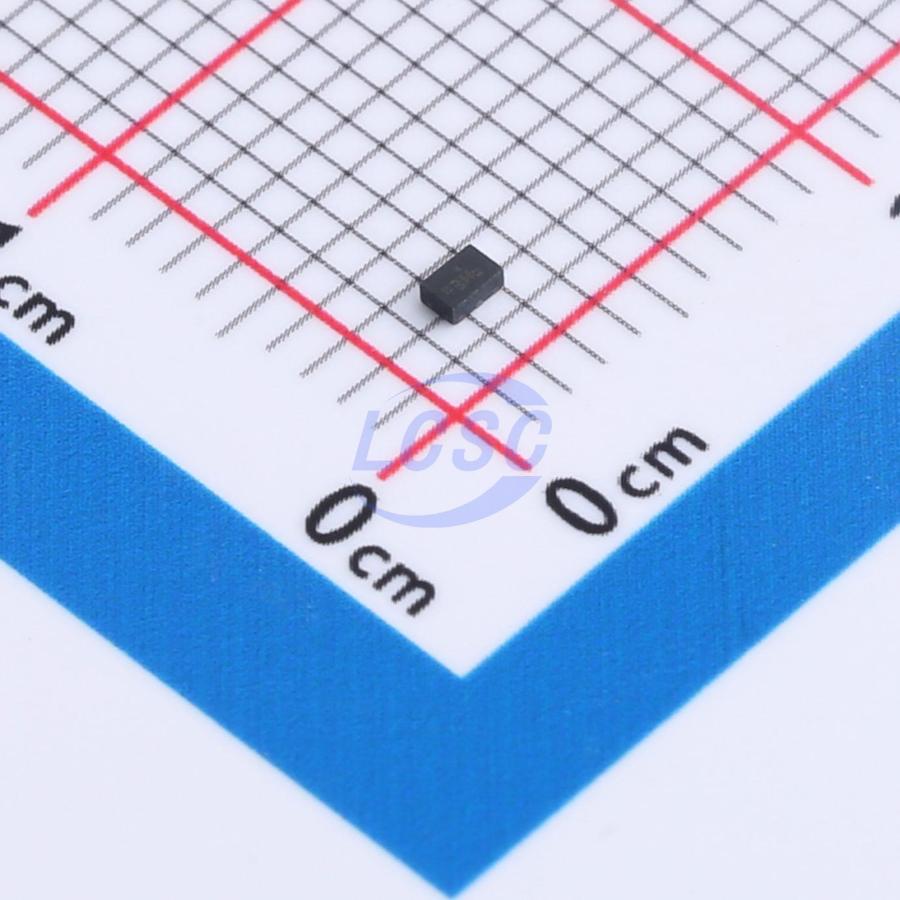

SN74AUP1G08DRYR(UMW)

700nA 800mV~3.6V 5.4ns@3.3V,15pF DFN-6(1x1.5) Gates and Inverters RoHS

DFN-6(1x1.5)ROHS3 CompliantActive

Single 2-input AND gate, powered by 0.8V to 3.6V

Manufacturer: UMW
Manufacturer part #: SN74AUP1G08DRYR(UMW)
Store part #: C7598680
Package / case: DFN-6(1x1.5)
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,090 in stock

#C7598680

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹6.62	₹66.20
100+	₹5.31	₹531.00
300+	₹4.58	₹1,374.00
1,000+	₹4.14	₹4,140.00
5,000+	₹3.77	₹18,850.00
10,000+	₹3.56	₹35,600.00
20,000+	₹3.52	₹70,400.00
40,000+	₹3.49	₹1,39,600.00

Quantity (min 10, multiples of 10)

10 × ₹6.62

₹66.20

excl. GST

₹78.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

SN74AUP1G08DRYR(UMW)

₹66.20 for 10 + GST

Specifications

Logic Family: 74AUP
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 1.6V;2V
Input Logic Level - Low: 700mV;900mV
Output Logic Level - High: 2.67V~2.95V
Quiescent Current(Iq): 700nA
Voltage - Supply: 800mV~3.6V
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Output Logic Level - Low: 330mV~450mV
Propagation Delay: 5.4ns@3.3V,15pF
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.335 g

Overview

The SN74AUP1G08 is a single 2-input AND gate operating over a voltage range of 0.8V to 3.6V. Utilizing advanced CMOS technology to achieve ultra-high speed with high output drive capability.

Key features

Designed for 0.8V to 3.6V VCC operating voltage
Low quiescent current; Icc = 0.7μA (maximum)
4mA balanced sink and source output current capability
Near-zero quiescent supply current, significantly reducing system power consumption requirements
Lead-free and RoHS compliant
