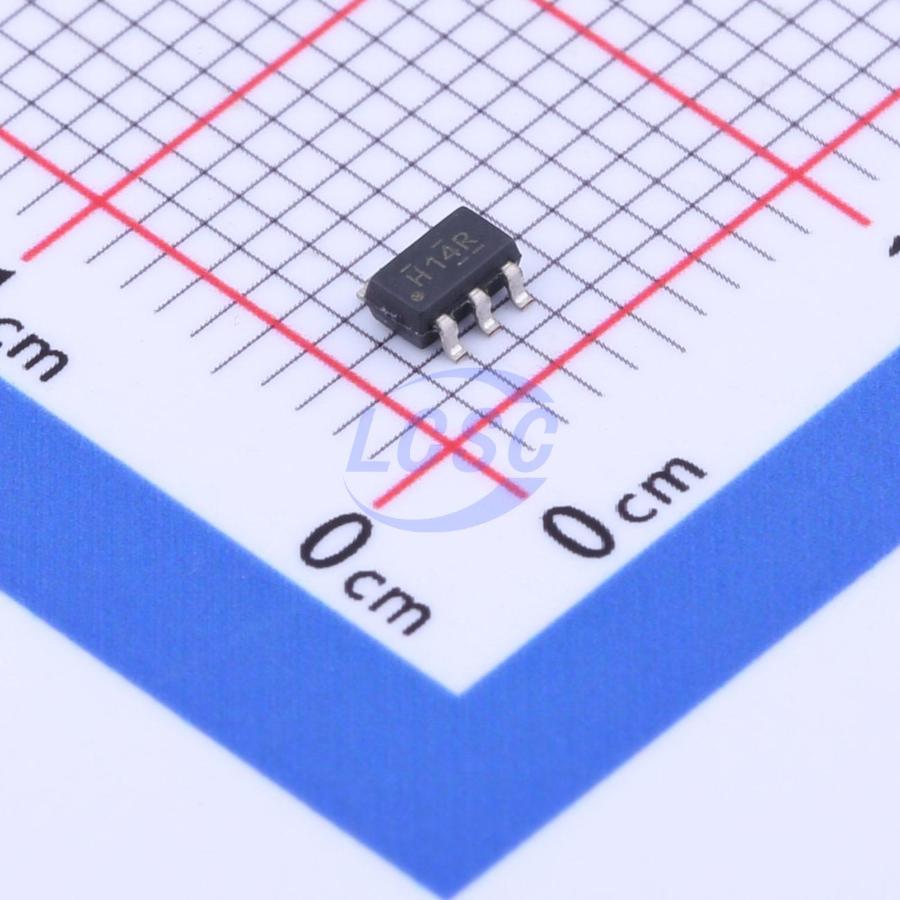

SN74AUP1G14DBVR

The AUP family assures a very low static and dynamic power consumption across the entire V_CC range of 0.8 V to 3.6 V, resulting in an increased battery life. This device functions as an independent gate with Schmitt-trigger inputs, which allows for slow input transition and better switching-noise immunity at the input. This device is fully specified for partial-power-down applications using I_Off. The I_Off circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.

Applications

• AV Receivers
• Smartphones
• Blu-ray Players and Home Theaters
• DVD Recorders and Players
• Desktop or Notebook PCs, Embedded PCs
• GPS: Personal Navigation Devices
• Mobile Internet Devices
• Portable Media Players
• Smoke Detectors
• Solid State Drive (SSD): Enterprise
• High-Definition (HDTV)
• Tablets: Enterprise
• Audio Docks: Portable DVR and DVS

Key features

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22: 2000-V Human-Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
• Low Static-Power Consumption (ICC = 0.9 μA Maximum)
• Low Dynamic-Power Consumption (Delta Cpd = 4.4 pF Typical at 3.3 V)
• Low Input Capacitance (Delta prime C1 = 1.5 pF Typical)
• Low Noise – Overshoot and Undershoot < 10% of VCC
• Supports Partial-Power-Down Mode Operation
• Includes Schmitt-Trigger Inputs
• Wide Operating VCC Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• Delta fpd = 4.9 ns Maximum at 3.3 V
