UMW

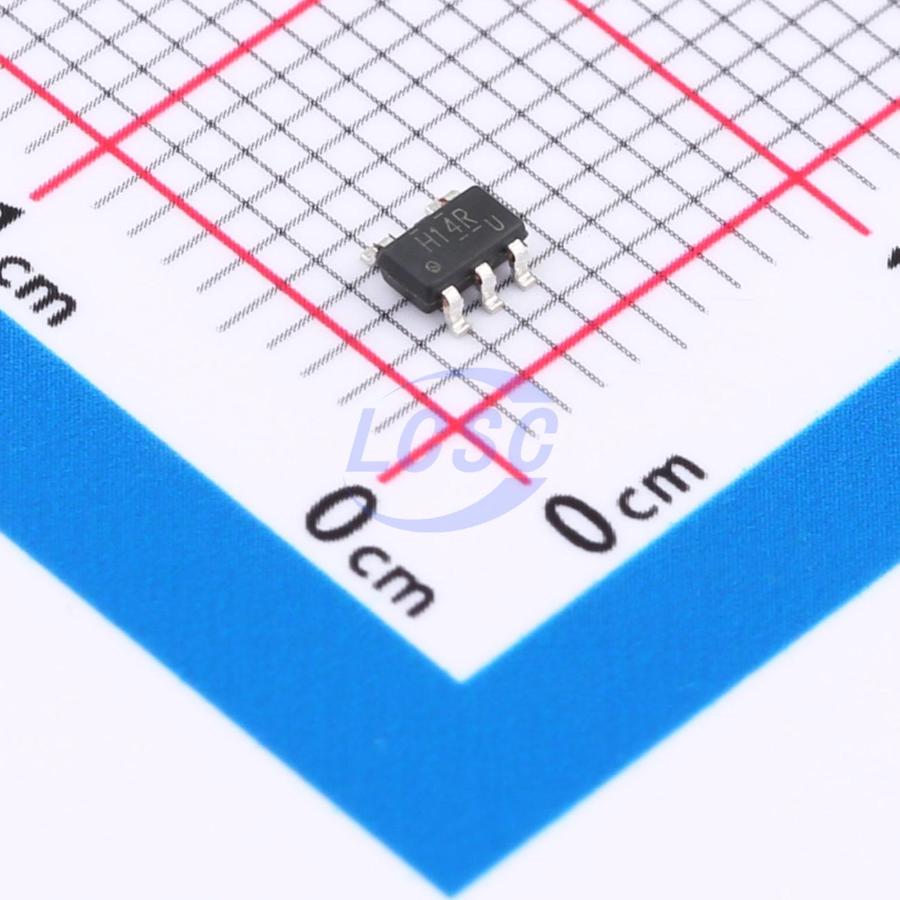

SN74AUP1G14DBVR(UMW)

Schmitt trigger 800mV~3.6V 1.9ns@3.3V,5pF 700nA 1 SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS CompliantActive

Single Inverter with Schmitt-Trigger Inputs

Manufacturer: UMW
Manufacturer part #: SN74AUP1G14DBVR(UMW)
Store part #: C22396377
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C22396377

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
10+	₹6.28	₹62.80
100+	₹4.96	₹496.00
300+	₹4.30	₹1,290.00
3,000+	₹3.81	₹11,430.00
6,000+	₹3.41	₹20,460.00
9,000+	₹3.21	₹28,890.00

Quantity (min 10, multiples of 10)

10 × ₹6.28

₹62.80

excl. GST

₹74.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G14DBVR(UMW)

₹62.80 for 10 + GST

Specifications

Logic Family: 74AUP
Input Type: Schmitt trigger
Voltage - Supply: 800mV~3.6V
Propagation Delay: 1.9ns@3.3V,5pF
Output Logic Level - Low: 450mV
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 2V
Input Logic Level - Low: 900mV
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 2.55V
Quiescent Current(Iq): 700nA
Current - Output High(IOH): 4mA
Number of Channels: 1
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

74AUP1G14 is a high-performance single inverter with Schmitt-trigger input, operating over a voltage range of 0.8V to 3.6V. The device is designed for ultra-high speed and high output drive capability.

Key features

Designed for 0.8V to 3.6V VCC operating voltage
Low quiescent current; ICC = 0.7μA (max)
4mA balanced sink and source output drive capability
Near-zero quiescent supply current, significantly reducing system power consumption requirements
Lead-free, RoHS compliant
Available in compact SC70-5, SOT23-5, and DFN6 (1.0×1.5mm) packages
