TECH PUBLICDatasheet (PDF)

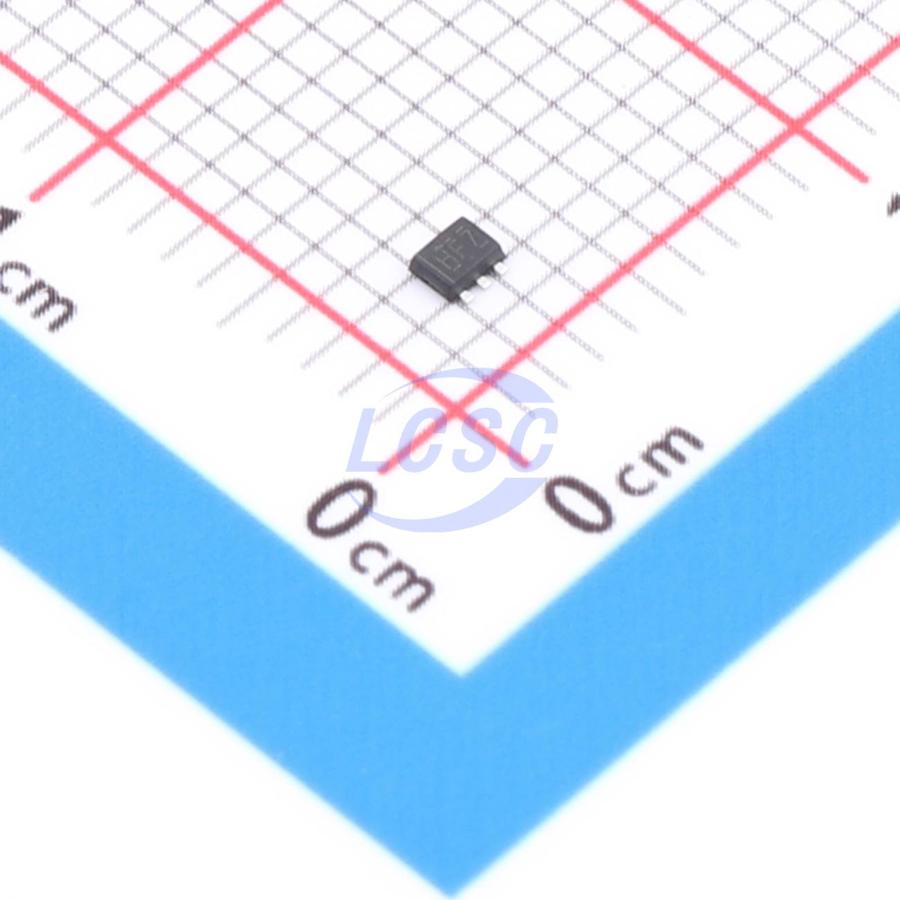

SN74AUP1G14DRLR-TP
Schmitt trigger 800mV~3.6V 3ns@3.3V,5pF 500nA 1 SOT-553 Gates and Inverters RoHS
SOT-553ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G14DRLR-TP
- Store part #
- C49333178
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,460 in stock
#C49333178
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.65 | ₹68.25 |
| 50+ | ₹10.80 | ₹540.00 |
| 150+ | ₹9.37 | ₹1,405.50 |
| 500+ | ₹8.30 | ₹4,150.00 |
| 2,500+ | ₹7.44 | ₹18,600.00 |
| 4,000+ | ₹7.01 | ₹28,040.00 |
5 × ₹13.65
₹68.25
excl. GST
₹80.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74AUP1G14DRLR-TP
₹68.25 for 5 + GST
Specifications
- Logic Family
- 74AUP
- Input Type
- Schmitt trigger
- Voltage - Supply
- 800mV~3.6V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 3ns@3.3V,5pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 1
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
SN74AUP1G14 is a single Schmitt-trigger inverter with inputs that accommodate slow voltage transitions and provide improved switching-noise immunity. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.
Applications
- Audio docking stations
- Blu-ray players and home theater systems
- Personal digital assistants
- Power supplies
- Solid-state drives
- Wireless headphones, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V ~ 3.6V
- Input tolerant up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; max I<sub>CC</sub> = 0.5μA
- ESD protection exceeds JESD 22
- Human Body Model: 2000V (A114-A)
- Machine Model: 200V (A115-A)
- Charged Device Model: 1000V (C101)
