UMW

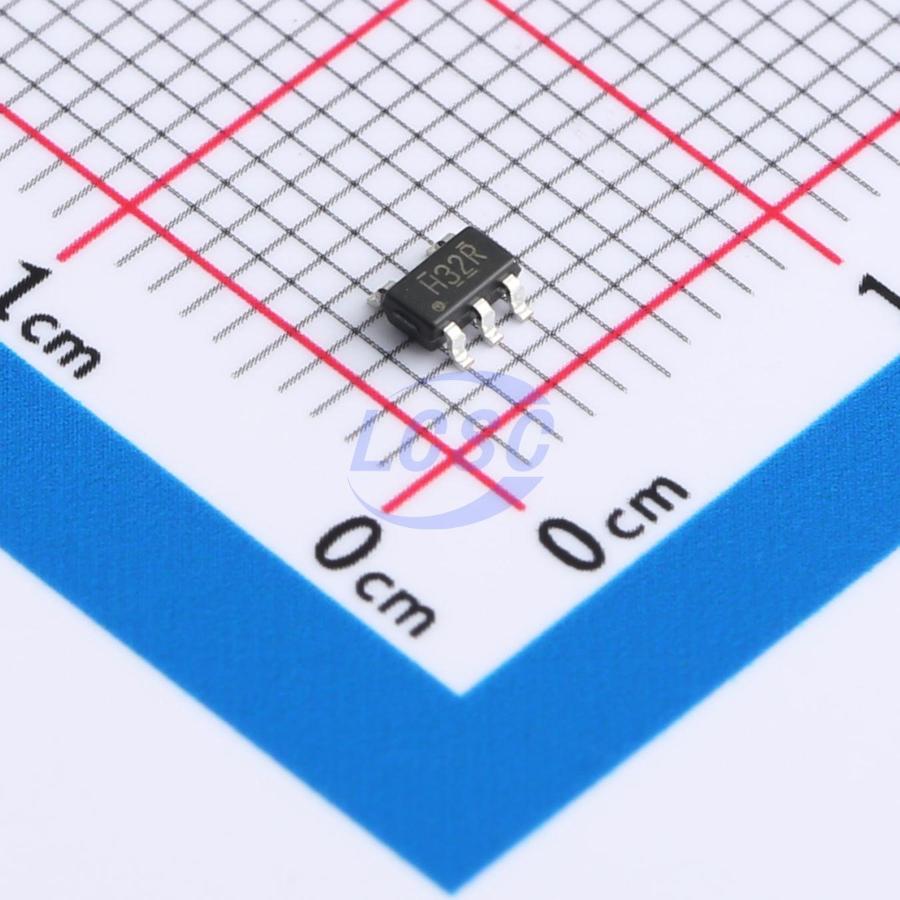

SN74AUP1G32DBVR(UMW)

700nA 800mV~3.6V 4.8ns@3.3V,5pF SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

Single 2-input OR gate

Manufacturer: UMW
Manufacturer part #: SN74AUP1G32DBVR(UMW)
Store part #: C7394025
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,820 in stock

#C7394025

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
10+	₹4.62	₹46.20
100+	₹4.04	₹404.00
300+	₹3.74	₹1,122.00
3,000+	₹3.52	₹10,560.00
6,000+	₹3.35	₹20,100.00
9,000+	₹3.25	₹29,250.00

Quantity (min 10, multiples of 10)

10 × ₹4.62

₹46.20

excl. GST

₹54.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G32DBVR(UMW)

₹46.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Logic Family: 74AUP
Input Logic Level - Low: 700mV;900mV
Input Logic Level - High: 1.6V;2V
Output Logic Level - High: 2.55V
Quiescent Current(Iq): 700nA
Voltage - Supply: 800mV~3.6V
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Propagation Delay: 4.8ns@3.3V,5pF
Output Logic Level - Low: 440mV
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

SN74AUP1G32 is a single 2-input OR gate that operates from a supply voltage of 0.8V to 3.6V. The device is fabricated using advanced CMOS technology to achieve ultra-high speed and high output drive capability.

Key features

Designed for 0.8V to 3.6V VCC supply voltage
Low quiescent current; ICC = 0.7μA (max)
4mA balanced sink and source output current capability
Near-zero quiescent supply current, significantly reducing system power consumption requirements
Lead-free, RoHS compliant
