UMW

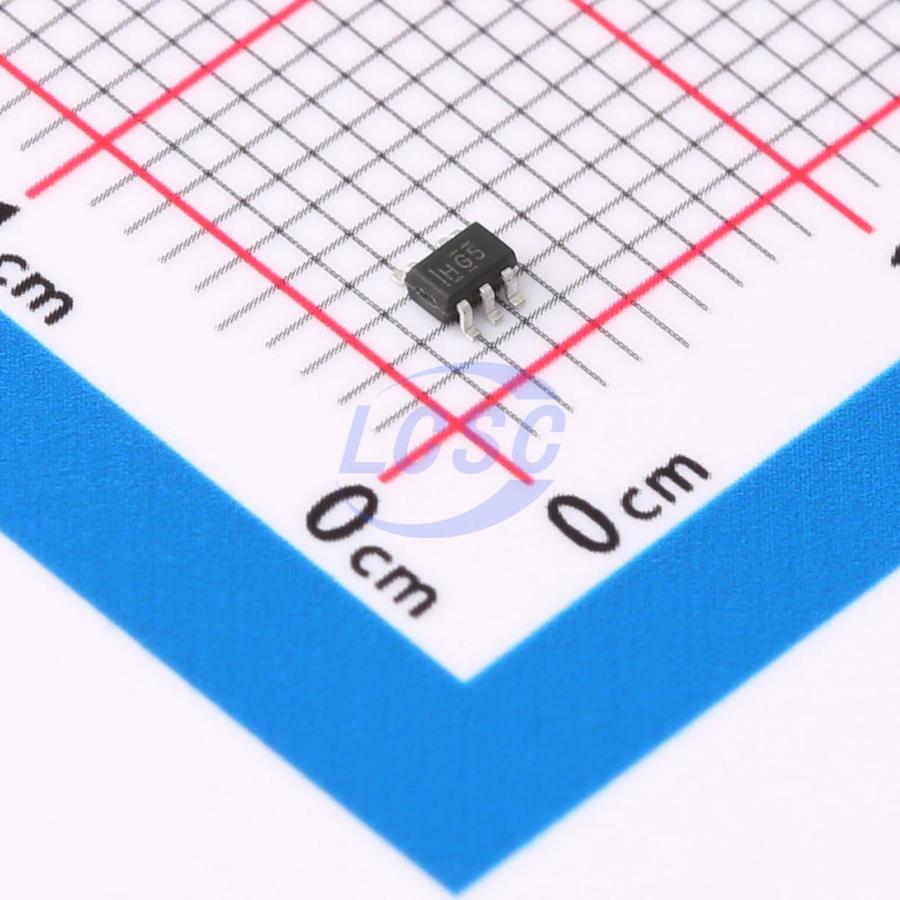

SN74AUP1G32DCKR(UMW)

800mV~3.6V 1.9ns@3.3V,15pF 700nA SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

Single 2-input OR gate

Manufacturer: UMW
Manufacturer part #: SN74AUP1G32DCKR(UMW)
Store part #: C7394035
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,490 in stock

#C7394035

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹5.99	₹59.90
100+	₹4.74	₹474.00
300+	₹4.11	₹1,233.00
3,000+	₹3.64	₹10,920.00
6,000+	₹3.27	₹19,620.00
9,000+	₹3.07	₹27,630.00

Quantity (min 10, multiples of 10)

10 × ₹5.99

₹59.90

excl. GST

₹70.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G32DCKR(UMW)

₹59.90 for 10 + GST

Specifications

Logic Family: AUP
Voltage - Supply: 800mV~3.6V
Propagation Delay: 1.9ns@3.3V,15pF
Input Logic Level - Low: 700mV;900mV
Input Logic Level - High: 1.6V;2V
Operating Temperature: -40℃~+85℃
Quiescent Current(Iq): 700nA
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.037 g

Overview

SN74AUP1G32 is a single 2-input OR gate that operates from a supply voltage of 0.8V to 3.6V. The device is fabricated using advanced CMOS technology to achieve ultra-high speed and high output drive capability.

Key features

Designed for 0.8V to 3.6V VCC supply voltage
Low quiescent current; ICC = 0.7μA (max)
4mA balanced sink and source output current capability
Near-zero quiescent supply current, significantly reducing system power consumption requirements
Lead-free, RoHS compliant
