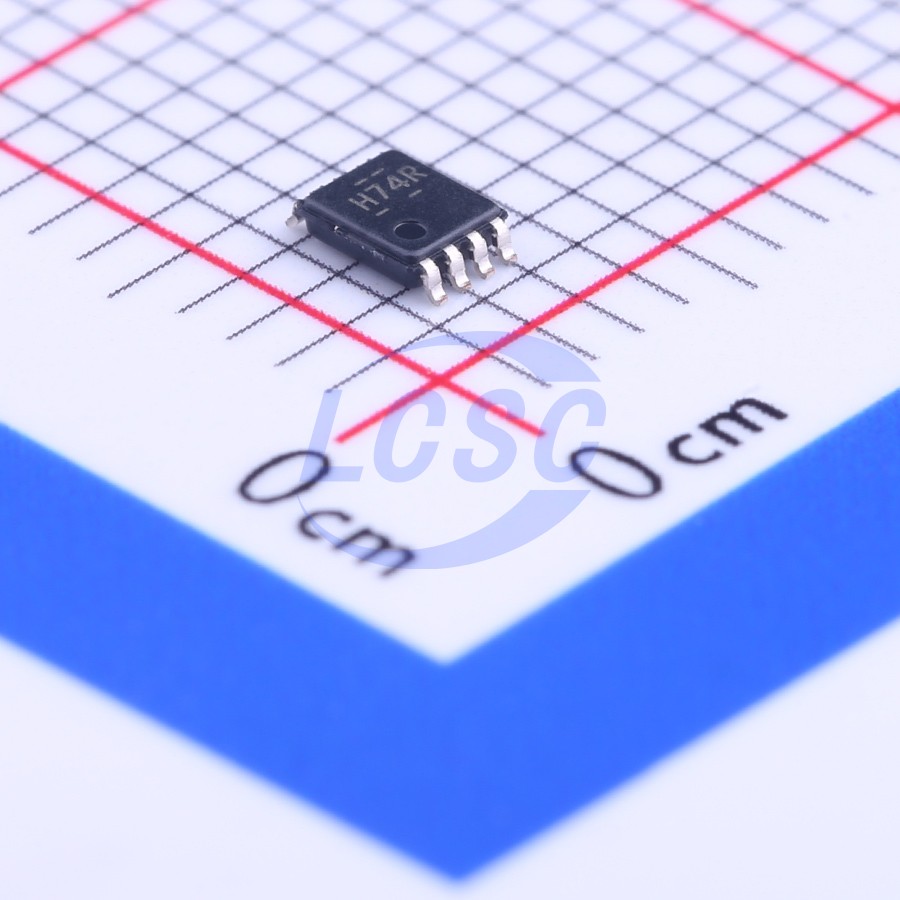

SN74AUP1G74DCUR

800mV~3.6V 1 1 7ns@3.3V,30pF VSSOP-8-0.5mm Flip Flops RoHS

VSSOP-8-0.5mmROHS3 CompliantActive

Low-Power Single Positive-Edge-Triggered D-Type Flip-Flop With Clear and Preset

Manufacturer: TI
Manufacturer part #: SN74AUP1G74DCUR
Store part #: C140267
Package / case: VSSOP-8-0.5mm
Category: Flip Flops
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,767 in stock

#C140267

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹89.12	₹89.12
10+	₹71.34	₹713.40
30+	₹62.45	₹1,873.50
100+	₹53.56	₹5,356.00
500+	₹48.36	₹24,180.00
1,000+	₹45.75	₹45,750.00

Quantity (min 1)

1 × ₹89.12

₹89.12

excl. GST

₹105.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G74DCUR

₹89.12 for 1 + GST

Specifications

Voltage - Supply: 800mV~3.6V
Number of Bits per Element: 1
Output Type: Complementary
Operating Temperature: -40℃~+85℃
Series: 74AUP Series
Number of Elements: 1
Current - Output High(IOH): 4mA
Current - Output Low(IOL): 4mA
Setup Time: 500ps
Quiescent Current: 500nA
Hold Time: 0ns
Propagation Delay: 7ns@3.3V,30pF
Trigger Type: Rising Edge

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

The AUP family is TI's premier solution to the industry's low-power needs in battery-powered portable applications. This family ensures a very low static- and dynamic-power consumption across the entire VCC range of 0.8 V to 3.6 V, resulting in increased battery life.

Applications

Servers
LED Displays
Network Switches
Telecom Infrastructure
Motor Drivers
I/O Expanders

Key features

Available in the Texas Instruments NanoStar Package
Low Static-Power Consumption: ICC = 0.9 μA Maximum
Low Dynamic-Power Consumption: Cpd = 5.5 pF Typical at 3.3 V
Low Input Capacitance: Ci = 1.5 pF Typical
Low Noise – Overshoot and Undershoot < 10% of VCC
Supports Partial-Power-Down Mode Operation
Schmitt-Trigger Action Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typical at 3.3 V)
Wide Operating VCC Range of 0.8 V to 3.6 V
Optimized for 3.3-V Operation
3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
Δfpd = 5 ns Maximum at 3.3 V
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
2000-V Human-Body Model (A114-B, Class II)
1000-V Charged-Device Model (C101)
