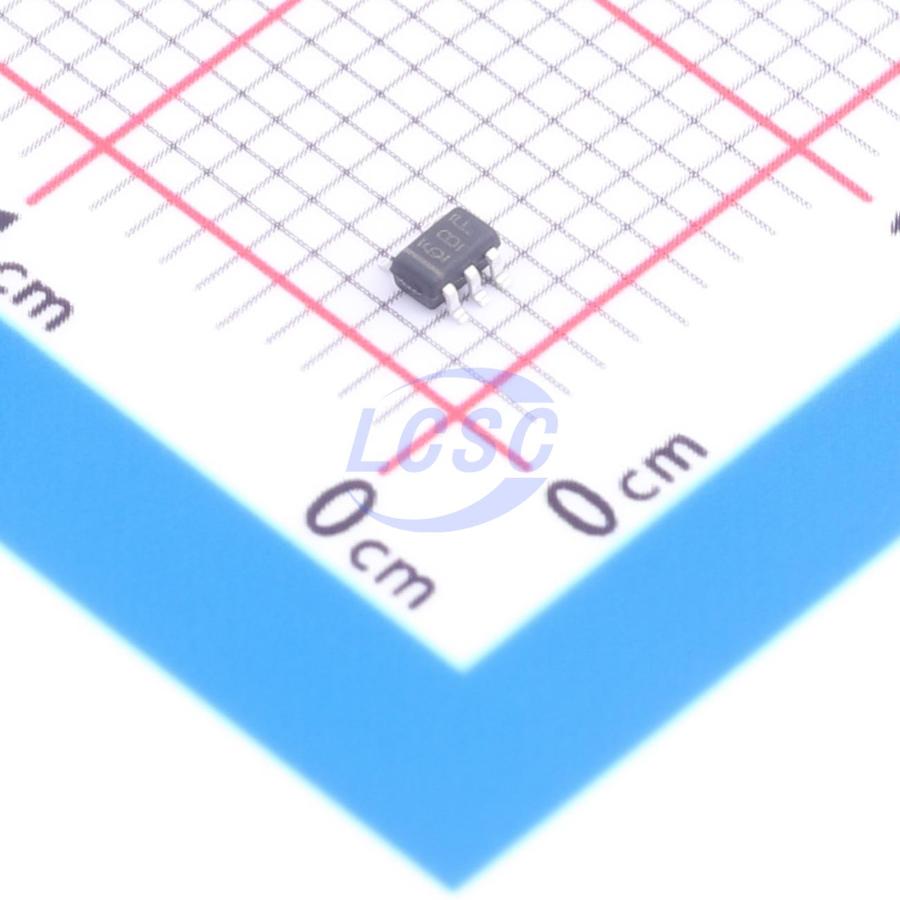

SN74AUP1T02DCKR-TP
Schmitt trigger 1.2uA 2.3V~3.6V 8.1ns@2.7V,30pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1T02DCKR-TP
- Store part #
- C54561886
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C54561886
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.57 | ₹92.85 |
| 50+ | ₹14.61 | ₹730.50 |
| 150+ | ₹12.62 | ₹1,893.00 |
| 500+ | ₹11.14 | ₹5,570.00 |
| 3,000+ | ₹9.95 | ₹29,850.00 |
| 6,000+ | ₹9.35 | ₹56,100.00 |
5 × ₹18.57
₹92.85
excl. GST
₹109.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1T02DCKR-TP
₹92.85 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 1.2uA
- Voltage - Supply
- 2.3V~3.6V
- Number of Channels
- 2;1
- Propagation Delay
- 8.1ns@2.7V,30pF
- Output Logic Level - Low
- 100mV;310mV;440mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
This device provides a single 2-input NOR function. It ensures ultralow static and dynamic power consumption across the entire VCC range of 2.3 V to 3.6 V. Designed for logic-level translation applications, the device features input switching levels compatible with 1.8 V low-voltage CMOS signals while operating from a single 2.5 V or 3.3 V supply.
Applications
- AV receivers
- Portable audio docks
- Blu-ray players and home theaters
- Embedded PCs
- Personal digital assistants (PDAs)
- Telecom/server AC/DC power supplies: single controller: analog and digital
- Solid-state drives (SSDs): client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 2.3 V to 3.6 V
- Inputs accept voltages up to 3.6 V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 1.5μA (maximum)
- ESD protection exceeds JESD 22
- 2000 V Human Body Model (A114-A)
- 200 V Machine Model (A115-A)
- 1000 V Charged Device Model (C101)
