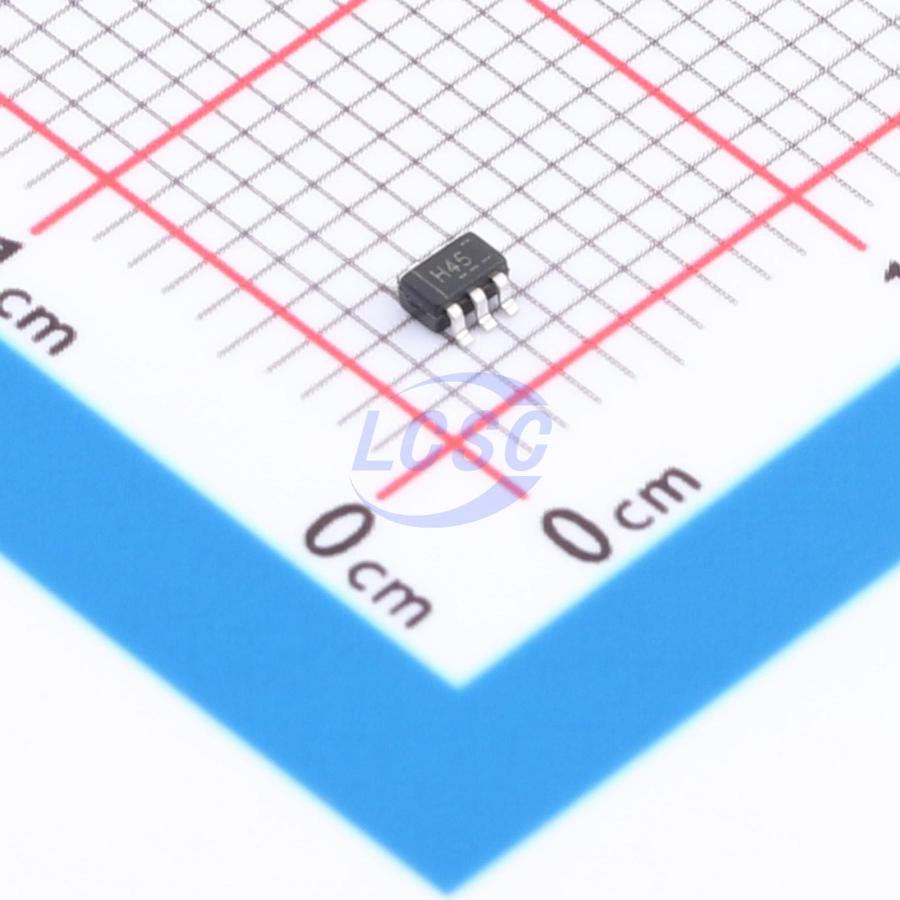

SN74AUP2G04DCKR-TP
800mV~3.6V 4ns@3.3V,30pF 500nA 2 SOT-363 Gates and Inverters RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP2G04DCKR-TP
- Store part #
- C50314334
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C50314334
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.27 | ₹92.70 |
| 100+ | ₹7.26 | ₹726.00 |
| 300+ | ₹6.26 | ₹1,878.00 |
| 3,000+ | ₹5.50 | ₹16,500.00 |
| 6,000+ | ₹4.91 | ₹29,460.00 |
| 9,000+ | ₹4.60 | ₹41,400.00 |
10 × ₹9.27
₹92.70
excl. GST
₹109.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP2G04DCKR-TP
₹92.70 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Voltage - Supply
- 800mV~3.6V
- Propagation Delay
- 4ns@3.3V,30pF
- Output Logic Level - Low
- 310mV;440mV
- Features
- Power shutdown protection;Power-off protection function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
SN74AUP2G04DCKR-TP is a dual inverter gate that implements the logic function Y = Ā. The device features an integrated power-off protection circuit to prevent damage during power-down conditions.
Applications
- AV receiver
- Embedded PC
- Solid-state drive
- Wireless peripheral
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- IOFF supports partial power-down mode
- Low quiescent current; maximum ICC = 0.5μA
- ESD protection exceeds JESD 22: HBM 2000V, MM 200V, CDM 1000V
