UMW

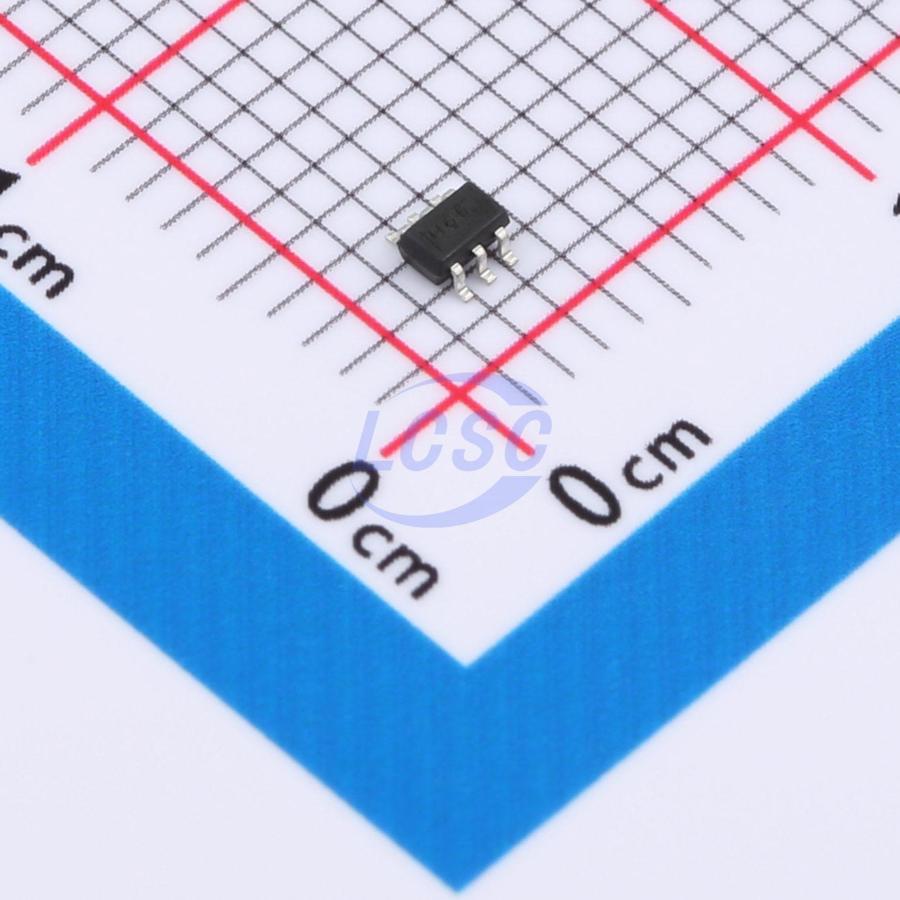

SN74AUP2G14DCKR(UMW)

Schmitt trigger 800mV~3.6V 5.6ns@3.3V,30pF 700nA 2 SC-70-6 Gates and Inverters

SC-70-6RoHSActive

Dual Inverter with Schmitt-Trigger Inputs

Manufacturer: UMW
Manufacturer part #: SN74AUP2G14DCKR(UMW)
Store part #: C22396368
Package / case: SC-70-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,100 in stock

#C22396368

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹6.76	₹67.60
100+	₹5.34	₹534.00
300+	₹4.63	₹1,389.00
3,000+	₹4.10	₹12,300.00
6,000+	₹3.68	₹22,080.00
9,000+	₹3.47	₹31,230.00

Quantity (min 10, multiples of 10)

10 × ₹6.76

₹67.60

excl. GST

₹79.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP2G14DCKR(UMW)

₹67.60 for 10 + GST

Specifications

Logic Family: 74AUP
Input Type: Schmitt trigger
Voltage - Supply: 800mV~3.6V
Propagation Delay: 5.6ns@3.3V,30pF
Output Logic Level - Low: 450mV
Features: Power shutdown protection;Noise suppression function
Input Logic Level - High: 2V
Input Logic Level - Low: 900mV
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 2.55V
Quiescent Current(Iq): 700nA
Current - Output High(IOH): 4mA
Number of Channels: 2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

SN74AUP2G14 is a high-performance dual inverter with Schmitt-trigger inputs, operating over a voltage range of 0.8V to 3.6V. The device is fabricated using advanced CMOS technology, designed for ultra-high-speed operation and high output drive capability.

Key features

Designed for 0.8V to 3.6V VCC operating voltage
Low quiescent current; ICC = 0.7 μA (max)
4mA balanced sink and source output drive capability
Near-zero quiescent supply current, significantly reducing system power consumption requirements
Lead-free and RoHS compliant
