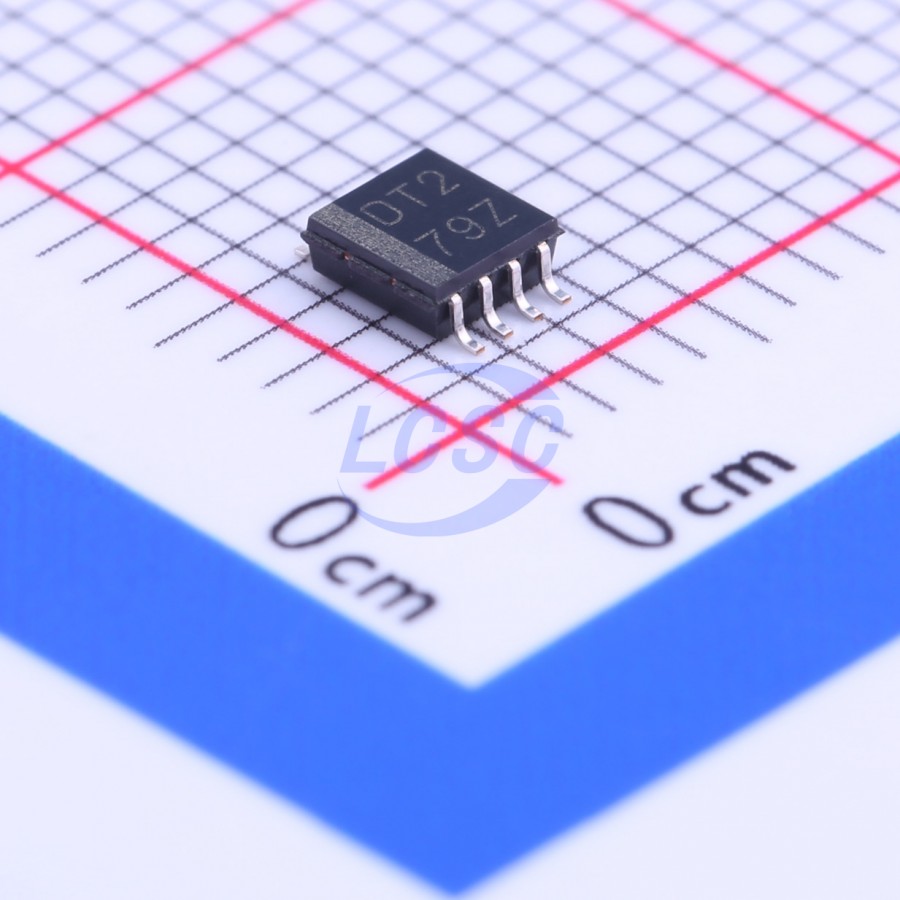

SN74AVC2T45DCTR

This 2-bit non-inverting bus transceiver uses two separate configurable power-supply rails. The A ports are designed to track VCCA and accepts any supply voltage from 1.2 V to 3.6 V. The B ports are designed to track VCCB and accepts any supply voltage from 1.2 V to 3.6 V. This allows for universal low-voltage bidirectional translation and level-shifting between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, and 3.3-V voltage nodes. The SN74AVC2T45 is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR pin) input activate either the B-port outputs or the A-port outputs. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports always is active and must have a logic HIGH or LOW level applied to prevent excess leakage current on the internal CMOS structure.

Applications

• Smartphones
• Servers
• Desktop PCs and Notebooks
• Other Portable Devices

Key features

• Available in the Texas Instruments NanoFree Package
• VCC Isolation Feature: If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State
• Dual Supply Rail Design
• I/Os are 4.6-V Over Voltage Tolerant
• Supports Partial-Power-Down Mode Operation
• 500 Mbps (1.8 V to 3.3 V)
• 320 Mbps (<1.8 V to 3.3 V)
• 320 Mbps (Level-Shifting to 2.5 V or 1.8 V)
• 280 Mbps (Level-Shifting to 1.5 V)
• 240 Mbps (Level-Shifting to 1.2 V)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
