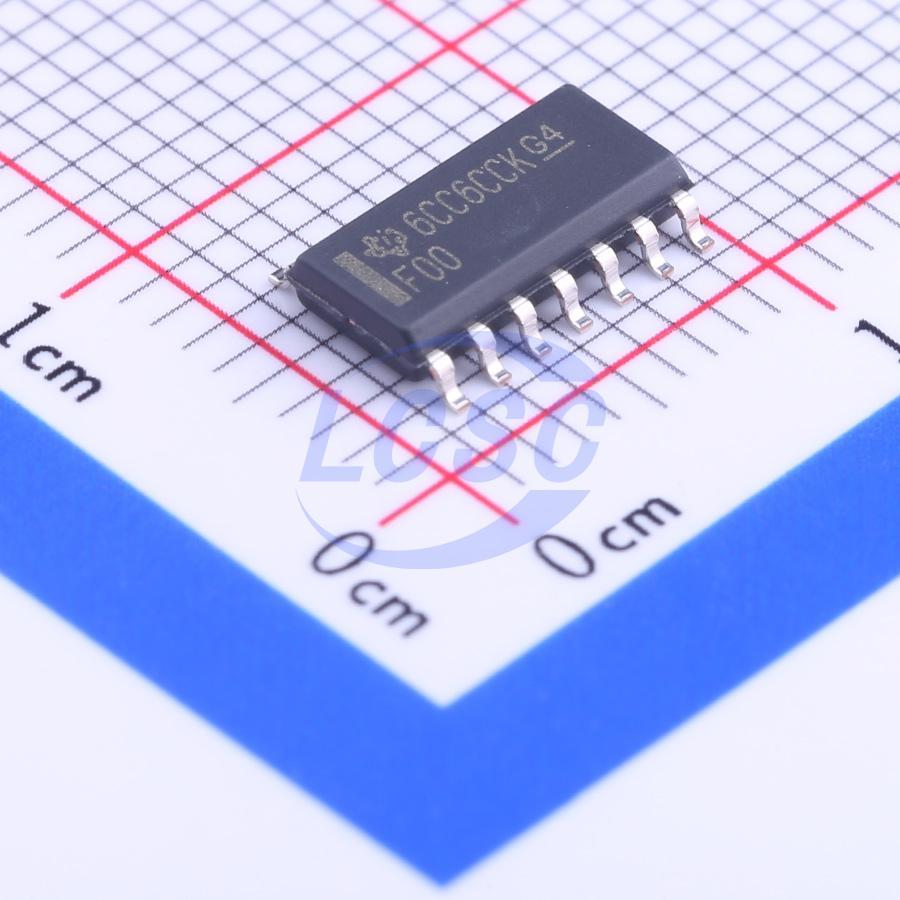

SN74F00DR
4.5V~5.5V 5ns@5V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74F00DR
- Store part #
- C7158
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,856 in stock
#C7158
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.30 | ₹99.30 |
| 10+ | ₹81.48 | ₹814.80 |
| 30+ | ₹72.58 | ₹2,177.40 |
| 100+ | ₹63.89 | ₹6,389.00 |
| 500+ | ₹49.55 | ₹24,775.00 |
| 1,000+ | ₹46.73 | ₹46,730.00 |
1 × ₹99.30
₹99.30
excl. GST
₹117.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74F00DR
₹99.30 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Logic Family
- 74F Series
- Output Logic Level - High
- 2.5V~3.4V
- Voltage - Supply
- 4.5V~5.5V
- Current - Output High(IOH)
- 1mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 300mV~500mV
- Propagation Delay
- 5ns@5V,50pF
- Current - Output Low(IOL)
- 20mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
These devices contain four independent 2- input NAND gates. They perform the Boolean functions Y = A(overline) • B(overline) or Y = A(overline) + B(overline) in positive logic. The SN54F00 is characterized for operation over the full temperature range of - 55℃ to 125℃. The SN74F00 is characterized for operation from 0℃ to 70℃.
Applications
- Automotive & Transportation - Communications & Telecommunications - Computers & Peripherals - Consumer Electronics - Energy & Lighting - Industrial - Medical - Security - Space - Video & Imaging
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74S00D#C4469833TI · SOIC-14 | TI | SOIC-14 | 10 | ₹693.60 · 10 in stock | View |
 | SN74AS00DR#C2878635TI · SOIC-14 | TI | SOIC-14 | 27 | ₹103.80 · 27 in stock | View |
 | SN74F38DR#C2878705TI · SOIC-14 | TI | SOIC-14 | 370 | ₹68.03 · 370 in stock | View |
| SN74LS26D#C2871511TI · SOIC-14 | TI | SOIC-14 | 20 | ₹199.05 · 20 in stock | View | |
 | SN74LS00D#C2872907TI · SOIC-14 | TI | SOIC-14 | 62 | ₹151.13 · 62 in stock | View |
