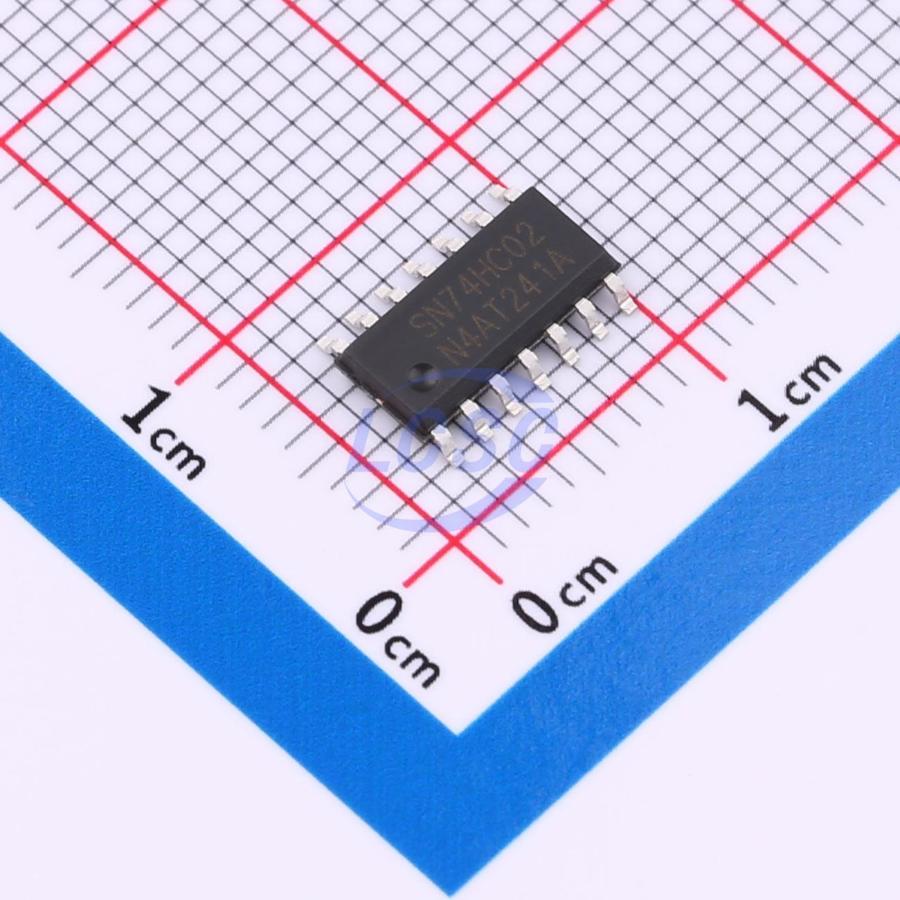

SN74HC02DR(LX)
NOR Gate IC 4 Channel SOP-14
SOP-14RoHSActive
SN74HC/HCT02 (LX) Quad 2-Input NOR Gates
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74HC02DR(LX)
- Store part #
- C22436973
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,455 in stock
#C22436973
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.14 | ₹55.70 |
| 50+ | ₹8.76 | ₹438.00 |
| 150+ | ₹7.57 | ₹1,135.50 |
| 500+ | ₹6.68 | ₹3,340.00 |
| 2,500+ | ₹5.66 | ₹14,150.00 |
| 4,000+ | ₹5.31 | ₹21,240.00 |
5 × ₹11.14
₹55.70
excl. GST
₹65.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SN74HC02DR(LX)
₹55.70 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 0V~100mV;160mV~260mV
- Propagation Delay
- 15ns@6V,50pF
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -40℃~+105℃
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 5.48V~5.81V;5.9V~6V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.258 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS02DR(LX)#C22374090lingxingic · SOP-14 | lingxingic | SOP-14 | 775 | ₹26.33 · 775 in stock | View |
